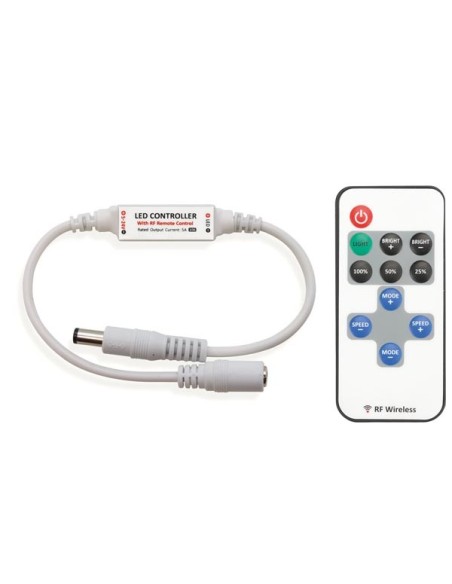

MINI SINGLE CHANNEL LED DIMMER - WITH RF REMOTE CONTROLLER
LEDC26
Available
€27.95
Tax included
MINI SINGLE CHANNEL LED DIMMER - WITH RF REMOTE CONTROLLER
Specification(s):
- ideal for use with single colour LED strips. See our [link url=products/list/?id=410950]website[/link]
- RF-remote: 3 functions
- switching: on-off
- dimming: 9 levels
- built-in stand-alone programs: fade and flashing animations
- memory function: the device remembers the last used function on power loss. On power restore, the last used function is automatically activated.
- use only with a power supply of max. 60 W / 12 V or 120 W / 24 V
- Physical properties
- Number of channels: 1
- Light colour range LED: Single colour
- RF remote height: 7 mm
- Depth RF remote: 86 mm
- RF remote width: 40 mm
- LED dimmer height: 8 mm
- LED dimmer depth: 31 mm
- LED dimmer width: 13 mm
- RF remote weight: 17 g
- Number of LED outputs: 1
- Weight LED dimmer: 14 g
- Electrical data
- Maximum LED output current per output: 5 A
- Maximum LED output current rating: 5 A
- Protection: Overheating
- Output power rating 12 V: 60 W
- Output power rating 24 V: 120 W
- Reverse polarity: No
- PWM frequency rating: ± 330 Hz
- Technical data
- Dimmable: Yes
- Radio frequency: 433.92 MHz
- Environmental data
- IP rating: IP20
- Usage location: Indoor only
- Operational properties
- Instruction manual languages: Dutch, English, French, German, Portuguese, Spanish
- Restart after protection: No
- Power supply
- Input voltage rating VDC: 12-24 V
- Included
- On/off switch: Yes
- Product basic info
- Colour: White
- Material: PVC (polyvinyl chloride)
- EAN: 5410329647865
