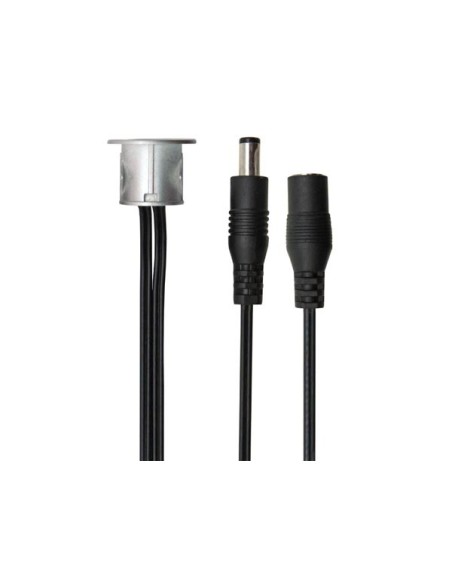

This touch LED dimmer is based on the capacitive touch technique.

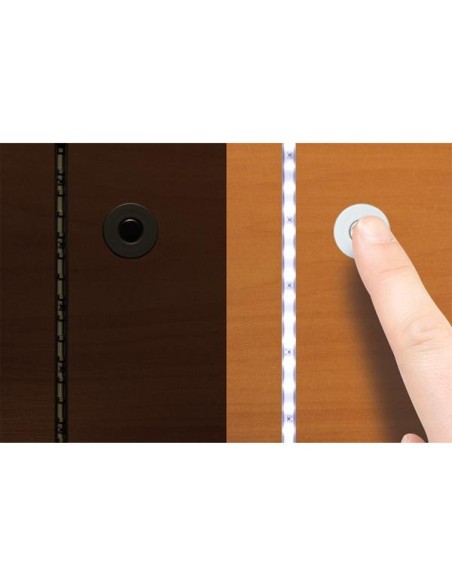

Touch the metal touch tablet for switching and dimming.
Specification(s):
Specification(s):
- ideal for use with single colour LED strips. See our [link url=products/list/?id=410950]website[/link]
- double function:
- switching: short touch (on-off)
- dimming: long touch (increase-decrease)
- use only with a power supply of max. 30 W / 12 V
- Physical properties
- Cable length: 0.2 m
- LED dimmer height: 16 mm
- LED dimmer depth: 22 mm
- LED dimmer width: 22 mm
- Electrical data
- Maximum LED current rated load: 2 A
- Maximum current rating: 2 A
- LED output short circuit: No
- Overload protection: No
- Short-circuit proof: No
- Reverse polarity: No
- PWM frequency rating: ± 770 Hz
- Set-up options
- Memory function: No
- Operational properties
- Restart after protection: No
- Power supply
- Maximum input current rating: 2 A
- Input voltage rating VDC: 12 V
- Included
- On/off switch: Yes
- Product basic info
- Colour: Grey
- Weight: 20 g
- Diameter: 22 mm
- EAN: 5410329553821
