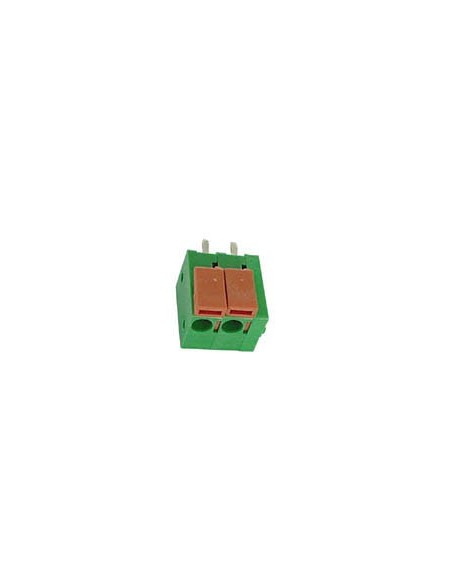

SCREWLESS CONNECTOR PRINT, 2 POLES, GREEN, PITCH   5mm
SCREWLESS CONNECTOR PRINT, 2 POLES, GREEN, PITCH   5mm
SCREWLESS CONNECTOR PRINT, 2 POLES, GREEN,...
SCREWLESS CONNECTOR PRINT, 2 POLES, GREEN,...

SCREWLESS CONNECTOR PRINT, 2 POLES, GREEN, PITCH 5mm

SCREW02SL
Available
€0.91
Tax included
SCREWLESS CONNECTOR PRINT, 2 POLES, GREEN, PITCH 5mm

The minimum purchase order quantity for the product is 10.


Specification(s):
  • these screwless terminals are suitable for both solid and flexible conductors
  • a spring made of stainless strip steel guarantees permanent and safe contact
  • operation by pushing the lever with a screwdriver (this lever is fully integrated in the body)
  • equipped with a cover for easy manual adjustment
  • blocks are stackable
Feature(s):
  • Physical properties
  • Diameter lead: 0.9 mm
  • Stackable: Yes
  • Shape: Square
  • Spring material: Stainless steel
  • Solder pins material: Tin-plated
  • Contact material: Brass
  • Electrical data
  • Current rating: 16 A
  • Dielectric strength voltage rating VAC: 2500 V
  • Maximum current per way: 15 A
  • Minimum insulation resistance at 5000 VDC: 500 megohm
  • Insulation withstand voltage (VAC per min): 1500 V
  • Minimum insulation withstand voltage rating VAC: 2000 V
  • Voltage rating VAC per way: 300 V
  • Technical data
  • Pitch: 5 mm
  • Mounting type: PCB, Through hole
  • Number of contacts: 2
  • Flammability rating: UL 94 V-0
  • Environmental data
  • Operating temperature: -33-120 °C
  • Soldering tip temperature: 250 °C
  • Connections
  • Wire size AWG: 14-20 AWG
  • Wire size mm²: 0.6-1.5 mm²
  • Wire size: 2.5 mm²
  • Electrical connections
  • Connector shape: Straight
  • IT connections
  • Connection type: Screwless push button
  • Power supply
  • Voltage rating VAC: 250 V AC
  • Product basic info
  • Colour: Green
  • Additional colour: Orange

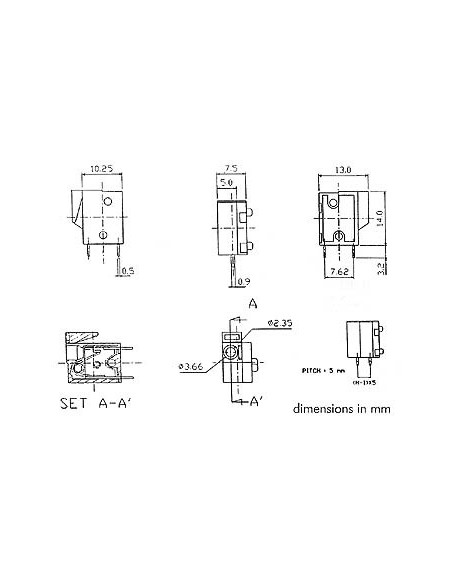

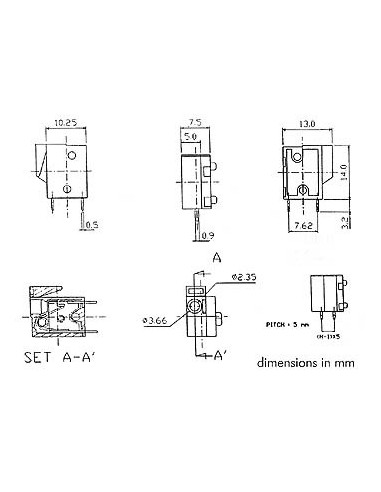

  • Depth: 7.5 mm
  • Height: 14 mm
  • Weight: 2.7 g
  • Width: 10.25 mm
  • Material: Glass-filled polyester
  • Additional material: Polyamide 66


  • EAN: 5410329240370
