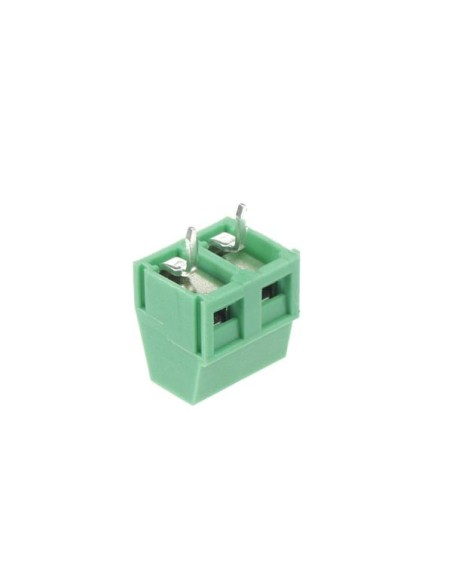

PROFESSIONAL SCREW TERMINAL, LOW PROFILE, 2-POLE, GREEN, 5mm PITCH
SCREW02PGL5
Available
€0.61
Tax included
PROFESSIONAL SCREW TERMINAL, LOW PROFILE, 2-POLE, GREEN, 5mm PITCH
Specification(s):
- blocks are stackable
- Physical properties
- Diameter lead: 0.9 mm
- Stackable: Yes
- Shape: Square
- Contact material: Tin-plated brass
- Electrical data
- Current rating: 12 A
- Dielectric strength voltage rating VAC: 2000 V
- Insulation resistance at 1000 VDC: 5000 megohm
- Maximum current per way: 12 A
- Voltage rating VAC per way: 300 V
- Technical data
- Pitch: 5 mm
- Mounting type: PCB, Through hole
- Number of contacts: 2
- Flammability rating: UL 94 V-0
- Environmental data
- Operating temperature: -40-105 °C
- Operational properties
- Mounting hole diameter: 1.4 mm
- Connections
- Wire size AWG: 14-26 AWG
- Wire size: 1.5 mm²
- Electrical connections
- Connector shape: 90°
- IT connections
- Connection type: Screw connection
- Power supply
- Voltage rating VAC: 300 V AC
- Product basic info
- Colour: Green
- Depth: 8.1 mm
- Height: 10 mm
- Weight: 1.7 g
- Width: 10 mm
- Material: Polyamide 66
- EAN: 5410329360795
