COUNTER FOR MINI IR SECURITY SYSTEM PEM7D
COUNTER FOR MINI IR SECURITY SYSTEM PEM7D
COUNTER FOR MINI IR SECURITY SYSTEM PEM7D
COUNTER FOR MINI IR SECURITY SYSTEM PEM7D

COUNTER FOR MINI IR SECURITY SYSTEM PEM7D

PEM7D/C
Available
€53.95
Tax included
COUNTER FOR MINI IR SECURITY SYSTEM PEM7D


Specification(s):
  • sensing type: counter for access control system [product name=PEM7D]PEM7D[/product]
  • applications: garage door, entrance, supermarket, restaurant, warehouse, ...
  • contents:

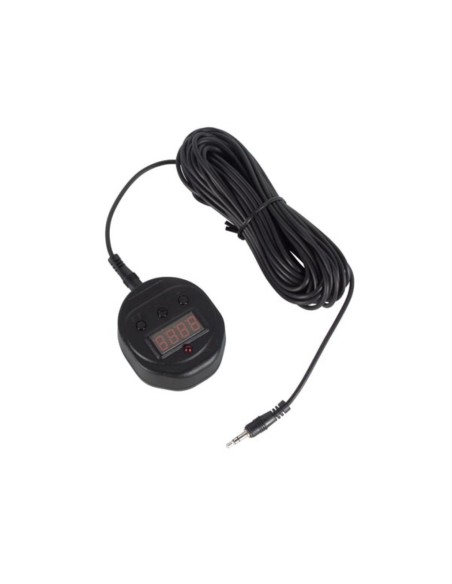

  • one 4-digit counter
  • one cable (10m) to connect the speaker output of the [product name=PEM7D]PEM7D[/product] with the input of the 4-digit counter PEM7D/C
  • one mounting bracket (black finish) and mounting screws
  • manual
Feature(s):
  • input voltage: 9-15Vdc
  • max. display: 9999 (4 digits)
  • addition: push "+" to add 1
  • subtraction: push "-" to subtract 1
  • manual operation: yes, hold + or - for 1 sec.
  • reset: press reset button ('0000')
  • monitor colour: red
  • casing material: ABS
  • current consumption: 48.7 mA ±10% (when '0000')
  • standby current: 25mA max.
  • light source: IR LED
  • ambient temperature: -20°C~45°°C (-4°F~122°F)
  • response time of speaker: chime: 1 sec - - alarm: 30sec (adjustable)
  • external chime output: NPN output
  • speaker output: chime/off/alarm (selected by slide switch)
  • included : mounting bracket, screw and cable (10m) with twin plugs


  • EAN: 5410329334437
