MINI INFRARED SECURITY SYSTEM - 7 m
PEM7D
Available
€112.91
Tax included
MINI INFRARED SECURITY SYSTEM - 7 m
Specification(s):
- easy to install
- adjustable timer & volume
- applications:
- entry detection
- automatic alarm warning
- presence detection

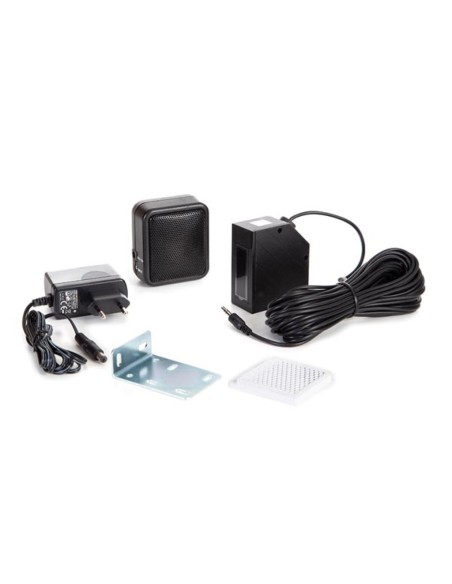

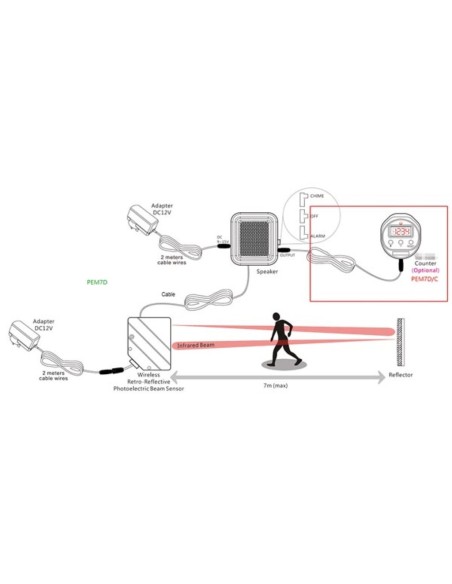

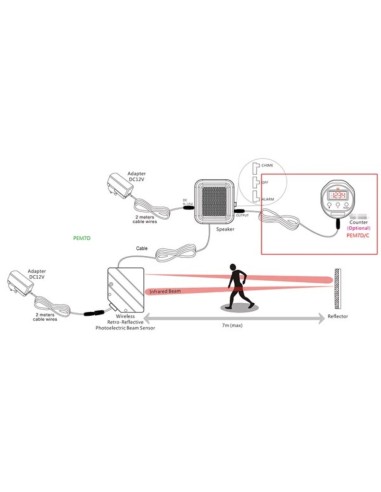

- includes:
- 1 x retro-reflection IR photoelectric beam sensor
- 1 x power supply 230 V / 12 VDC / 500 mA
- 1 x alarm speaker (timer & volume adjustable)
- optional counter for PEM7D: [product name=PEM7D/C]PEM7D/C[/product]
- Physical Properties
- Cable Length: ± 9.5 m
- Presence Detection: Yes
- Light Source: IR LED
- Electrical Data
- Current Consumption: < 130 mA
- Standby Current Consumption: 25 mA
- Technical Data
- Speaker Output Type: Off, Alarm, Chime
- Adjustable Timer Before Alarm Activation: 3-30 s
- Set-up Options
- Maximum Detection Range: 7 m
- Adjustable Timer: Yes
- Environmental Data
- IP Rating: IP44
- Operating Temperature: -20-50 °C
- Usage Location: indoor & outdoor
- Operational Properties
- Instruction Manual Languages: Dutch, English, French, German, Spanish
- Automatic Alarm Warning: Yes
- Duration Of Audio Signal for Alarm: 30 s
- Duration Of Audio Signal for Chime: ± 1 s
- Entry Detection: Yes
- Volume Control: Yes
- Power Supply
- Input Voltage Rating Vdc: 9-15 V
- Adapter Output Voltage Rating VDC: 12 V DC
- Adapter Input Voltage Rating VAC: 230 V AC
- Adapter Output Current Rating: 500 mA
- Included
- Sets Contents: *1 x Photoelectric IR sensor with reflector,*1 x Power supply 230 V / 12 VDC / 500 mA,*1 x alarm speaker (timer & volume adjustable)
- Product Basic Info
- Colour: Black
- Material: ABS
- Additional Material: Glass, Metal
- EAN: 5410329304461
