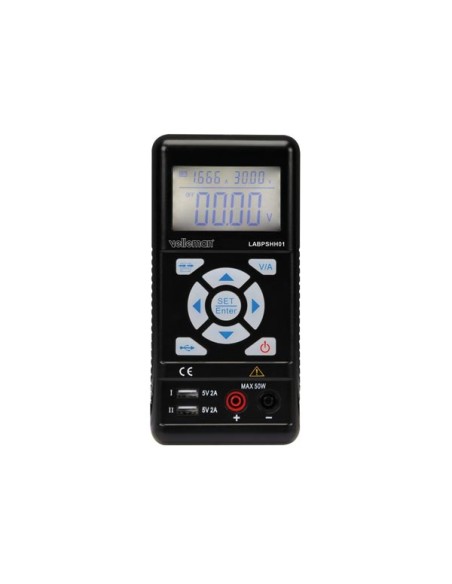

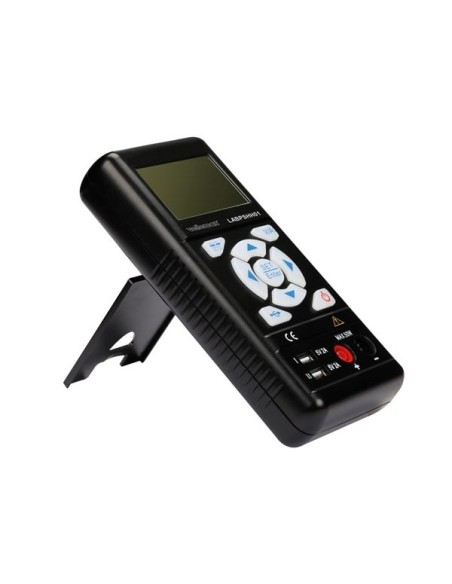

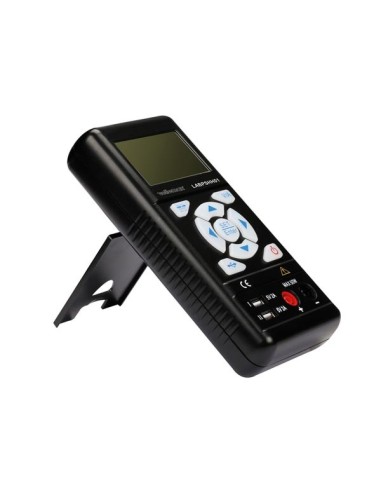

HANDHELD SWITCHING MODE LAB POWER SUPPLY 0.3 - 30 VDC / 0 - 3.75 A MAX WITH LCD DISPLAY
LABPSHH01
Out-of-Stock
€229.00
Tax included
HANDHELD SWITCHING MODE LAB POWER SUPPLY 0.3 - 30 VDC / 0 - 3.75 A MAX WITH LCD DISPLAY
Specification(s):
- handheld DC switching power supply
- large LCD display for voltage and current
- compact and light weight design
- works in constant voltage and current mode
- with 2 built-in USB ports (3,75 A MAX.)
- short circuit protection
- test leads not included
- fuse-protected
- Physical properties
- Display: Yes
- Cable length: 1.2 m
- Display type: LCD
- Electrical data
- Output current rating: 0-3.75 A
- Protection: Short-circuit
- Maximum continuous output power: 50 W
- Maximum USB output current: 3.75 A
- Fuse protection: Yes
- Technical data
- Ripple and noise:
- ripple and noise (20 Hz - 20 MHz):
- voltage: =/< 10 mVrms / 150 mVp-p
- current: =/< 10mVrms/150mVp-p
- ripple and noise (20 Hz - 20 MHz):
- Measurement specifications:
- measurement accuracy:
- voltage: 10 mV
- current: 1 mA
- measured value accuracy @ 25 °C (± % of output + offset):
- voltage: <= 0.05 % + 5 mV
- current: <= 0.05 % + 5 mA
- measurement speed:
- voltage: 100 ms/s
- current: 100 ms/s
- measurement accuracy:
- Regulation:
- line regulation (± % of output + offset):
- voltage: CV <= 0.01% + 3mV
- current: CC <= 0.01% + 3mA
- load regulation (± % of output + offset):
- voltage: CV <= 0.02 % + 3 mV
- current: CC <= 0.02 % + 3 mA
- line regulation (± % of output + offset):
- Setting value accuracy:
- setting value accuracy @ 25 °C (± % of output + offset):
- voltage: <= 0.05 % + 5 mV
- current: <= 0.05 % + 5 mA
- setting value accuracy @ 25 °C (± % of output + offset):
- Temperature coefficient:
- temperature coefficient @ 0 - 40 °C (± % of output + offset):
- voltage: <= 0.05 %
- current: <= 0.1 %
- temperature coefficient @ 0 - 40 °C (± % of output + offset):
- Operational properties
- Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
- Electrical connections

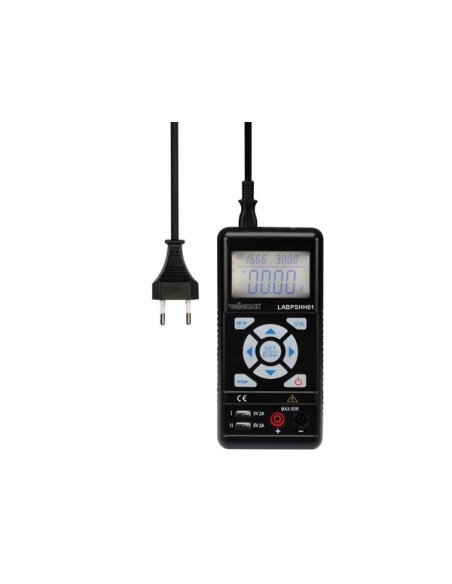

- Mains plug type: Europlug
- IEC connector: C7 (figure eight)
- IT connections
- USB port type: USB-A
- Power supply
- Input frequency rating: 50/60 Hz
- Input current rating: 1 A
- Input voltage rating VAC: 220-240 V
- Output voltage rating VDC: 0.3-30 V
- Included
- Number of USB ports: 2
- Test leads: No
- Product basic info
- Colour: Black
- Additional colour: Blue, White
- Depth: 38 mm
- Height: 185 mm
- Weight: 370 g
- Width: 88 mm
- Material: PVC (polyvinyl chloride)
- EAN: 5410329639631
