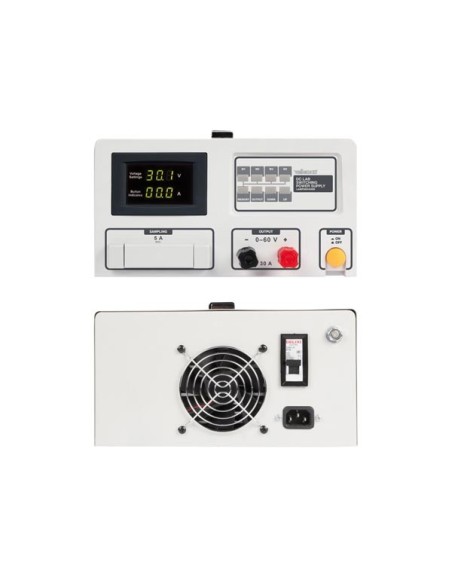

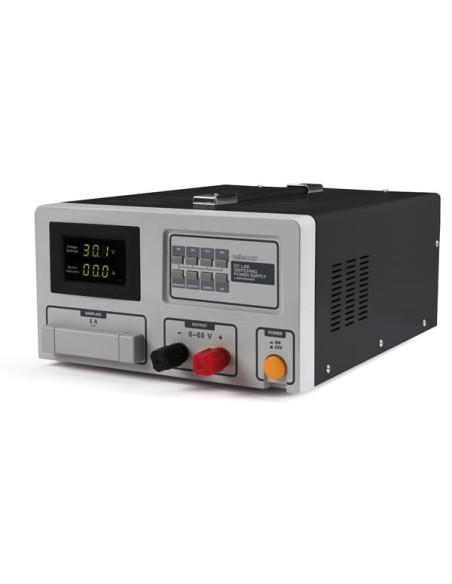

DC LAB SWITCHING MODE POWER SUPPLY 0-60 VDC / 30 A MAX WITH LED DISPLAY
DC LAB SWITCHING MODE POWER SUPPLY 0-60 VDC / 30 A MAX WITH LED DISPLAY
DC LAB SWITCHING MODE POWER SUPPLY 0-60 VDC /...
DC LAB SWITCHING MODE POWER SUPPLY 0-60 VDC /...

DC LAB SWITCHING MODE POWER SUPPLY 0-60 VDC / 30 A MAX WITH LED DISPLAY

LABPS6030SM
Available
€799.01
Tax included
DC LAB SWITCHING MODE POWER SUPPLY 0-60 VDC / 30 A MAX WITH LED DISPLAY


Specification(s):
  • switching mode power supply
  • LED display for voltage and current
  • protection mode: current-limiting
  • colour: grey - dark grey
  • fuse-protected
Feature(s):
  • Physical properties
  • Display type: LCD
  • Electrical data
  • Ripple voltage RMS: <= 30 mV
  • Output connector type: IEC 1010
  • Output current rating: 0-30 A
  • Protection: Current limiting
  • Fuse type: Automatic circuit breaker C 25
  • Power factor: 0.63
  • Technical data
  • Pollution degree: 2
  • Number of current outputs: 1
  • Number of voltage outputs: 1
  • Environmental data
  • Operating temperature: 18-28 °C
  • Operational properties
  • Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
  • Maximum relative humidity: <  90 %
  • Maximum operating altitude: <= 2000 m
  • Electrical connections
  • Mains plug type: France/Germany (type E/F)
  • IEC connector: C13 (IEC), C14 (kettle)
  • Power supply
  • Input frequency rating: 50 Hz
  • Power consumption: 2100 W
  • Input current rating VAC: 11 A
  • Input voltage rating VAC: 230 V
  • Output voltage rating VDC: 0-60 V
  • Product basic info
  • Colour: Dark grey
  • Additional colour: Grey
  • Depth: 360 mm
  • Height: 145 mm
  • Weight: 6.5 kg
  • Width: 275 mm
  • Material: Steel
  • Additional material: ABS, Aluminium, PP (Polypropylene), PVC (polyvinyl chloride)


  • EAN: 5410329595470
