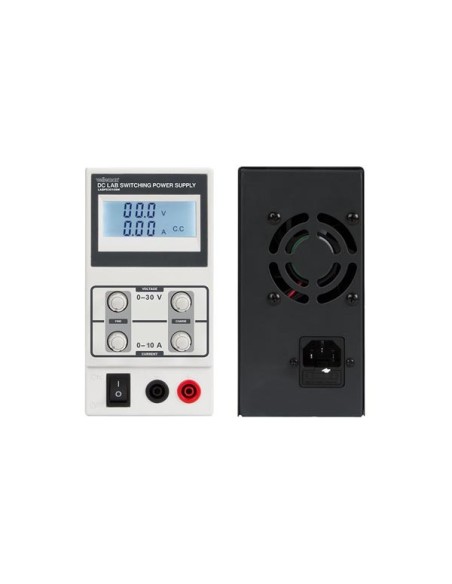

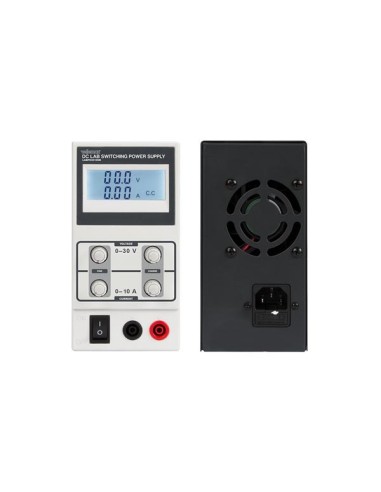

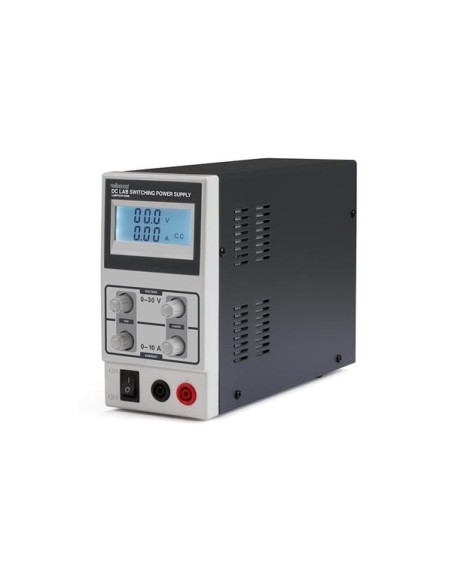

DC LAB SWITCHING MODE POWER SUPPLY 0-30 VDC / 0-10 A MAX WITH LCD DISPLAY
LABPS3010SM
Available
€169.91
Tax included
DC LAB SWITCHING MODE POWER SUPPLY 0-30 VDC / 0-10 A MAX WITH LCD DISPLAY
Specification(s):
- switching mode power supply
- LCD display for voltage and current
- protection mode: current-limiting
- colour: grey - dark grey
- output connectors: IEC1010
- fuse-protected
- Physical properties
- Display type: LCD
- Electrical data
- Ripple voltage peak to peak: <= 100 mV
- Output connector type: IEC 1010
- Output current rating: 0-10 A
- Protection: Current limiting
- Fuse type: T 5 A (slow)
- Power factor: 0.60
- Technical data
- Pollution degree: 2
- Number of current outputs: 1
- Number of voltage outputs: 1
- Environmental data
- Operating temperature: 0-40 °C
- Operational properties
- Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
- Maximum relative humidity: < 90 %
- Maximum operating altitude: 2000 m
- Electrical connections
- Mains plug type: France/Germany (type E/F)
- IEC connector: C13 (IEC), C14 (kettle)
- Power supply
- Input frequency rating: 50 Hz
- Power consumption: 420 W
- Input current rating VAC: 2.4 A
- Input voltage rating VAC: 230 V
- Output voltage rating VDC: 0-30 V
- Product basic info
- Colour: Dark grey
- Additional colour: Grey
- Depth: 230 mm
- Height: 160 mm
- Weight: 1.67 kg
- Width: 85 mm
- Material: Steel
- Additional material: ABS, Aluminium, PP (Polypropylene), PVC (polyvinyl chloride)
- EAN: 5410329595463
