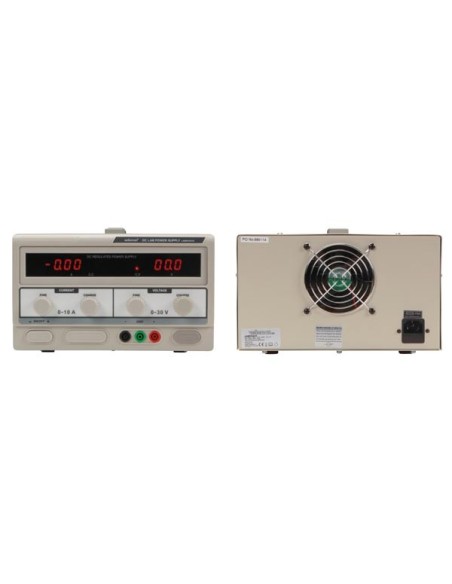

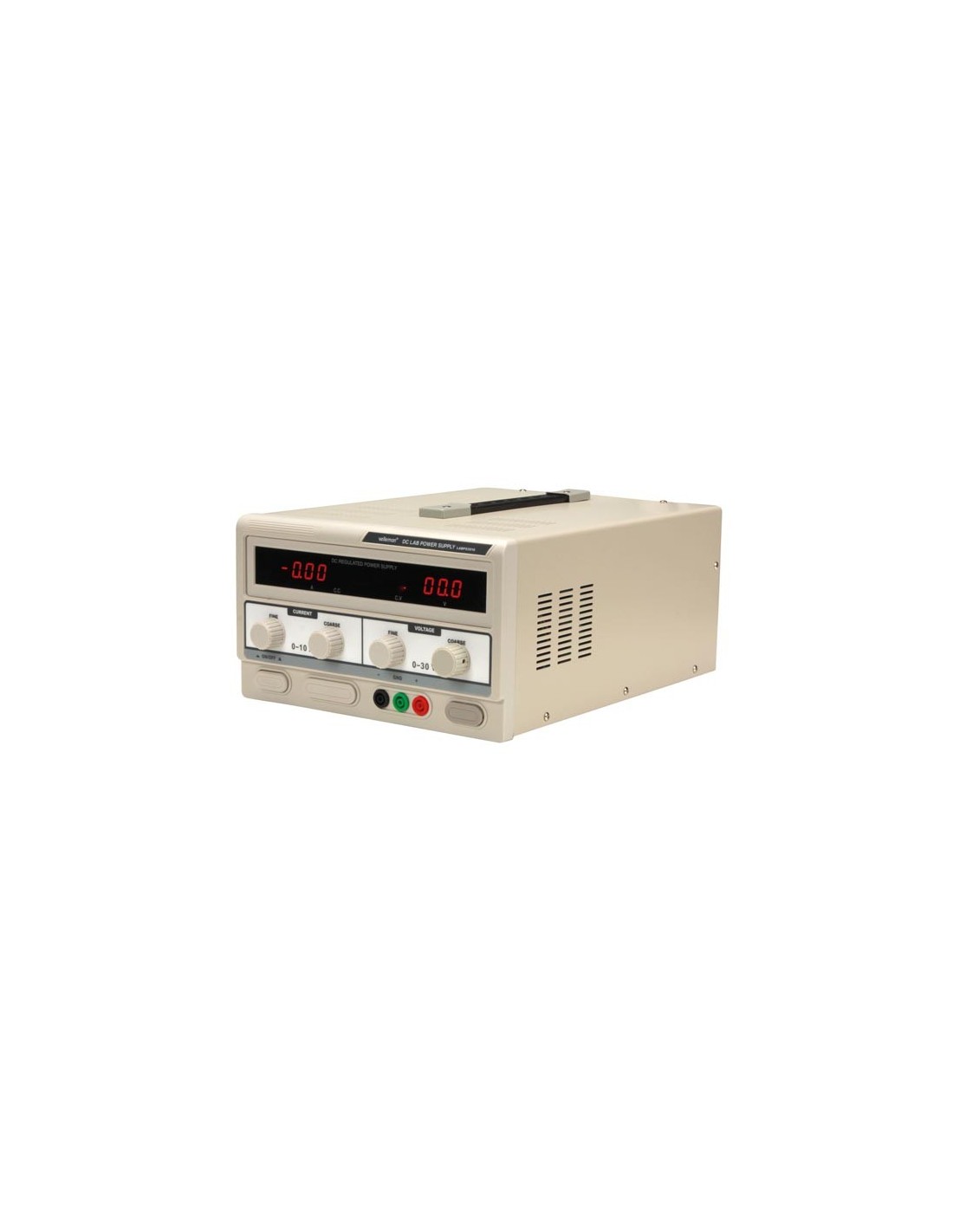

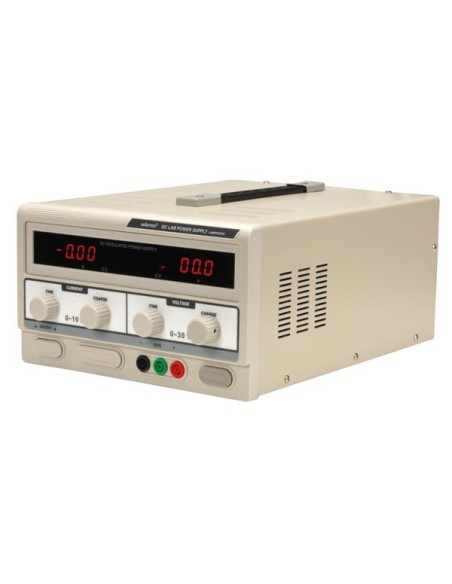

DC LAB POWER SUPPLY 0-30 VDC / 0-10 A MAX WITH DUAL LED DISPLAY
DC LAB POWER SUPPLY 0-30 VDC / 0-10 A MAX WITH DUAL LED DISPLAY
DC LAB POWER SUPPLY 0-30 VDC / 0-10 A MAX WITH...
DC LAB POWER SUPPLY 0-30 VDC / 0-10 A MAX WITH...

DC LAB POWER SUPPLY 0-30 VDC / 0-10 A MAX WITH DUAL LED DISPLAY

LABPS3010
Available
€289.01
Tax included
DC LAB POWER SUPPLY 0-30 VDC / 0-10 A MAX WITH DUAL LED DISPLAY


Specification(s):
  • LED display for voltage and current
  • protection mode: current-limiting
  • colour: white-grey
  • insulated terminals
  • output connectors: IEC1010
  • indoor use only
  • pollution degree II
  • measurement CAT III
  • fuse-protected
Feature(s):
  • input voltage: 230 VAC 50 Hz 1.6 A 260 W pf: 0.75
  • output voltage: 0-30 VDC adjustable max.
  • output current: 0-10 A adjustable max.
  • ripple voltage: =/< 200mVp-p
  • operating altitude: up to 2000 m
  • operating temperature: 5°C - 40°C
  • max. relative humidity: < 80%
  • fuse: F5AL 250 V
  • dimensions: 265 × 140 × 360 mm
  • weight: 12.4 kg


  • EAN: 5410329595272
