DUAL RELAY DIGITAL ACCESS CONTROL READER KEYPAD - WEATHERPROOF
DUAL RELAY DIGITAL ACCESS CONTROL READER KEYPAD...

DUAL RELAY DIGITAL ACCESS CONTROL READER KEYPAD - WEATHERPROOF

HAA2890
Available
€99.96
Tax included
DUAL RELAY DIGITAL ACCESS CONTROL READER KEYPAD - WEATHERPROOF

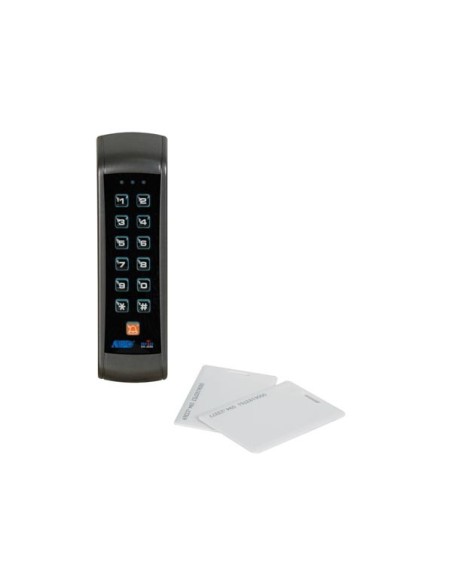

The HAA2890 is a weatherproof, self-contained, mullion mount compact keypad, combining the functions of digital keypad and proximity EM card reader in one unit.

Specification(s):
  • durable epoxy coated back-lit key board with doorbell button
  • vertical mount weatherproof plastic housing
  • operated with PIN codes & EM cards
  • self-contained, stand-alone operation
  • built-in data I/O port expandable for split-decoded operation
  • relay output contacts for door strike and doorbell
  • dual illumination level, user friendly for low-lit environment
  • programmable user codes, visitor codes and master code
  • stand-alone electrical access control
  • compatible with Fail-secure or Fail-safe electrical lock
  • programmable intelligent egress button: controls possible with delay, warning and button contact ways of momentary or holding contact
  • common user PIN, group user PINs & private user PINs for working with the EM card at various levels of security
  • extremely long programmable timer for output relay: 1 second up to over 24 hours
  • optional (sold separately): HAA2866/TAG - HAA2866/TAG2
  • user manual: English
Feature(s):
  • housing: ABS
  • operating voltage: 11-15 VDC
  • current: 60-90 mA
  • output relay 1: NC + NO dry contacts 2 A / 24 VDC max.
  • output relay 2: NO dry contact 2 A / 24 VDC max.
  • tamper switch: NC dry contact 50 mA / 12 VDC
  • operating temperature: -20 °C to +70 °C / -4 °F to 158 °F
  • humidity: 5-95 % RH, non condensing
  • IP rating : IP55
  • weight: 160 g / 5.64 oz
  • dimensions (H x W x D): 168.5 x 46.5 x 24 mm / 6.63" x 1.83" x 0.94"


  • EAN: 5410329460716
