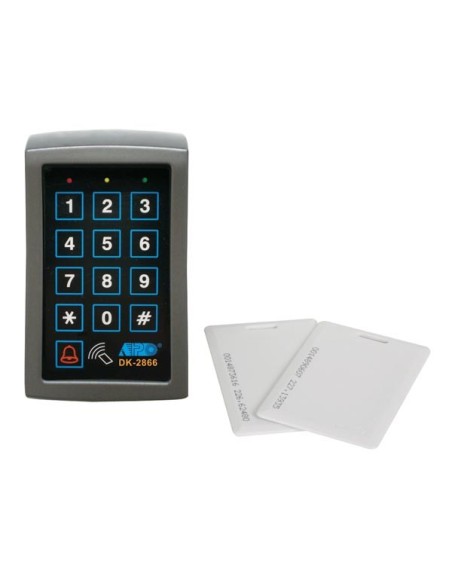

3 OUTPUT RELAY DIGITAL ACCESS CONTROL KEYPAD
3 OUTPUT RELAY DIGITAL ACCESS CONTROL KEYPAD

3 OUTPUT RELAY DIGITAL ACCESS CONTROL KEYPAD

HAA2866N
Available
€110.91
Tax included
3 OUTPUT RELAY DIGITAL ACCESS CONTROL KEYPAD


Specification(s):
  • tact switch back-lit key board
  • weatherproof surface mount housing
  • operated with PINs & EM cards
  • stand-alone or split-decoded operation
  • stand-alone electric lock or inter-lock installation
  • door opening and alarm arm/disarm control
  • extremely long programmable timer for output relays: 1 second up to over 24 hours
  • The keypad has the three output relays for output 1, 2 with standard N.C. and N.O. contacts and a doorbell button contact and an open collector output for output 3.
  • users for output 1: 1000 (PINs and/or cards) + 50 duress codes
  • users for output 2: 100 (PINs and/or cards) + 10 duress codes
  • users for output 3: 100 (PINs and/or cards) + 10 duress codes
  • 50 visitor codes for output 1; one time use or valid for 1 up to 99 hours
  • over 100 million combinations for user PINs
  • superuser code operates all outputs and also sets or resets 'inhibit' for output 1
  • Wiegand data output for the valid entry of PINs (34 bits) & reading of EM cards (26 bits)
  • sole reader mode provides Wiegand data output for all PIN entries & card readings
  • data I/O port in split-decoded operation
  • card reader compatible with all the standard 125 kHz proximity EM cards & key fobs
  • programmable intelligent Egress button controls with options of delay, warning and button contacting possibilities of momentary or holding contact
  • common user PIN, group user PINs & private user PINs for working with the EM card for various levels of security enhancement
  • ON-OFF selectable for pacifier tone, standby flashing LED & keyboard back-lit lighting
  • input terminals for door position sensor, Egress button & output, 1 inhibit control
  • optional (sold separately): HAA2866/TAG - HAA2866/TAG2
  • user manual: English
Feature(s):
  • power supply: 11 - 15 VDC
  • current: 60 - 150 mA
  • open collector outputs for the duress, alarm, key active, inter-lock & output 3, 100 mA sink / 24 Vdc maximum rating
  • output relay 1: solid state relay, fail-safe of fail-secure selectable, 3 A / 16 VDC max.
  • output relay 2: standard NC + NO dry contacts 1 A / 24 VDC max.
  • output relay 3: NO dry contact for doorbell button, 1 A / 24 VDC max.
  • tamper switch: NC dry contact 50 mA / 24 VDC
  • operating temperature: -20 °C to +70 °C
  • humidity: 5-95 % RH, non condensing
  • IP rating: IP55
  • housing: ABS
  • weight: 200 g
  • dimensions (H x W x D): 126 x 75 x 35-40 mm


  • EAN: 5410329683696
