IP AND POWER DISTRIBUTOR FOR EDS201B

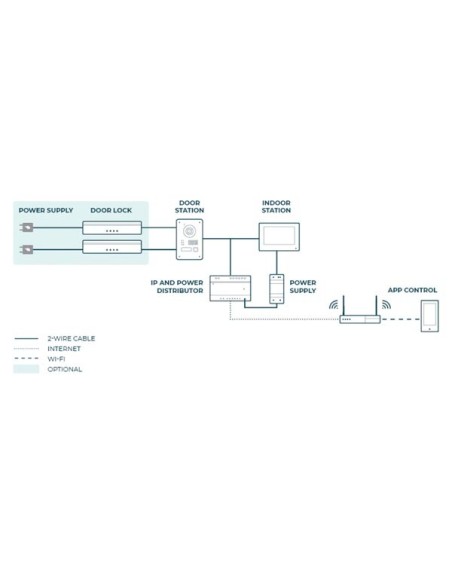

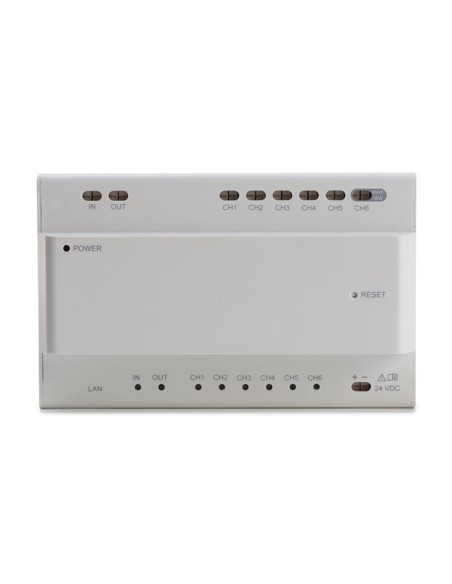

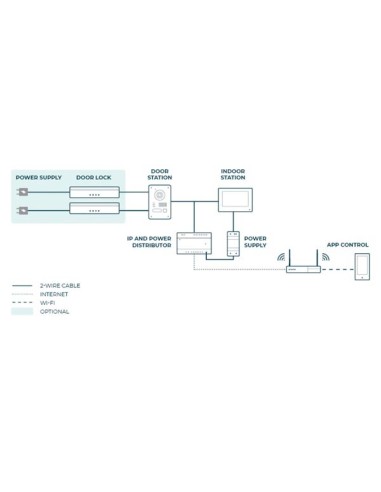

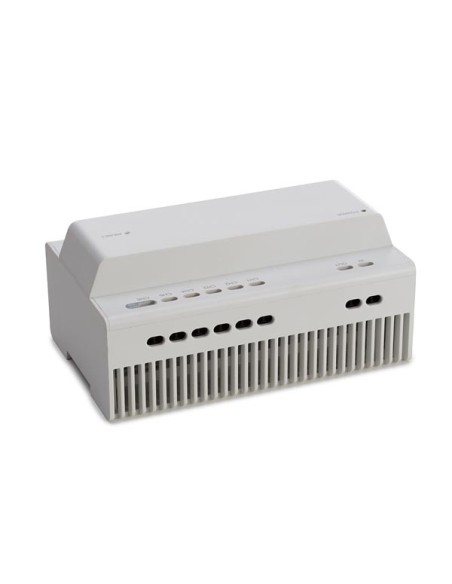

Power distributor and IP network interface in DIN rail housing. This module allows you to distribute the power to your EDS201B video doorphone and indoor touchscreen. The wired IP connection gives your video doorphone and indoor touchscreen a fast and solid Internet connection.
Specification(s):
Specification(s):
- 6 two-wire cascade interfaces, including 1 interface (max. 16 W) used for connecting door station
- DIN rail module, 24 VDC
- fixed RJ45 network connection
- interface to EDS201B 2-wire video doorphone
- interface:
- network interface: 1, RJ45 (for LAN/WAN access)
- 2-wire interface: 6-ch for device power supply, including 1-ch for door station power supply with max. output power 16 W
- power indicator: 1
- general:
- transmission distance: 60 meter
- power supply: 24 VDC (not incl.)
- power consumption: < 9W
- working temperature: -10 °C - 50 °C
- working humidity: 10 % - 90 %
- EAN: 5410329736293
