2-WIRED VIDEO INTERCOM SYSTEM

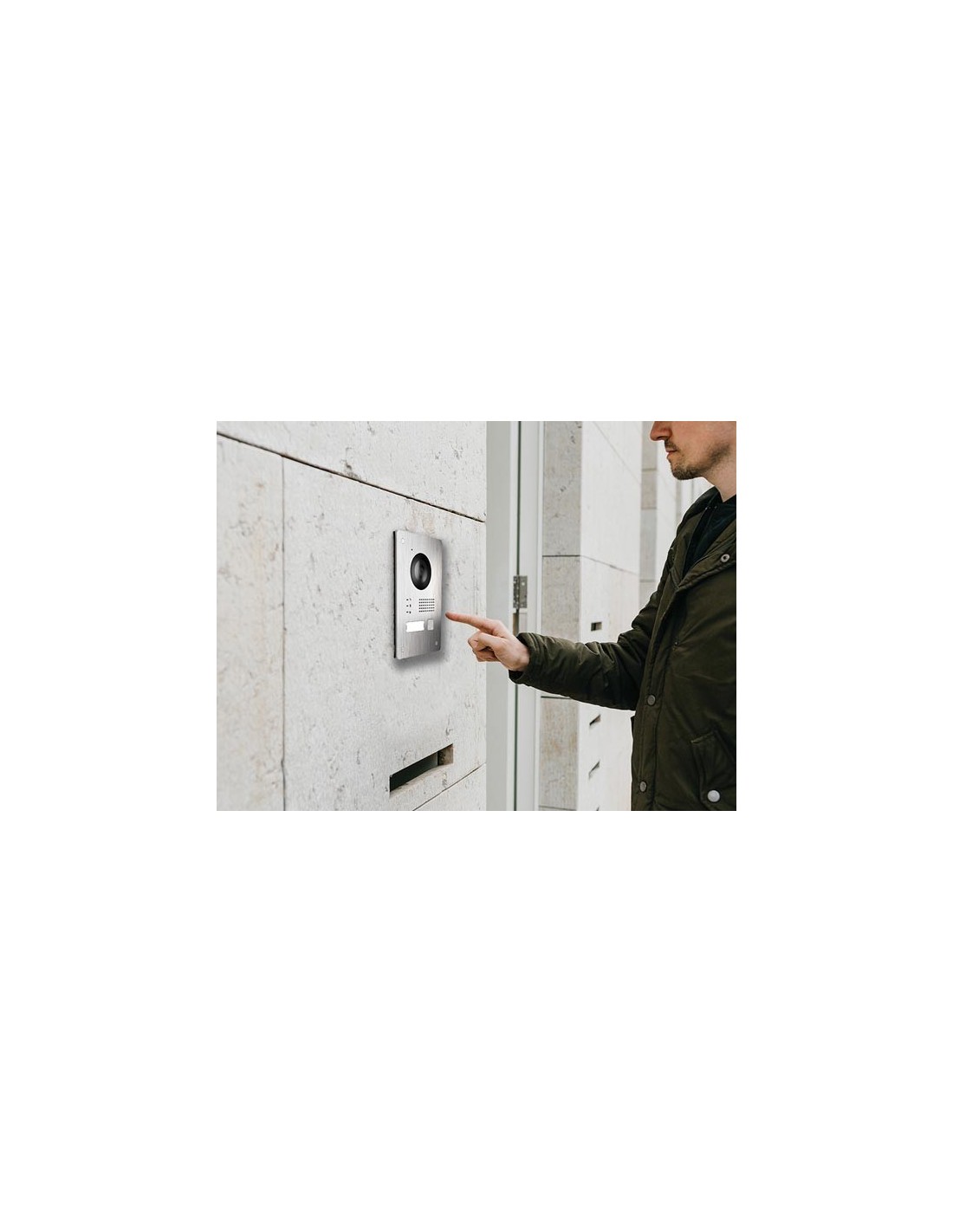

This professional video door phone uses only 2 wires between the outdoor station and the indoor station. The outdoor station comes with surface-mount and flush-mount brackets and is made of brushed metal with IP65 water-resistant protection. The indoor touchscreen has Wi-Fi connection allowing remote connection to mobile devices through the Guarding Vision app. It can record videos to microSD cards and send a notification to your mobile device. The indoor station can also display images from other IP cameras.

Specification(s):

• two-wire indoor station:
• easy, cost-efficient installation
• receives video call and unlocks on mobile app anywhere, anytime
• villa door station:
• high-quality imaging with 2 MP resolution
• easy, cost-efficient installation
• user-friendly design, name tag, communication status LED indicator
• IP65
• various applications:
• Android app: [link url=https://play.google.com/store/apps/details?id=com.mcu.guardingvision&hl=nl&gl=US]Guarding vision[/link]
• iOS app: [link url=https://apps.apple.com/us/app/guarding-vision/id1101697283#?platform=iphone]Guarding Visoin[/link]
• user manual: English only

Feature(s):

• system parameters:
• operation system: embedded Linux operating system
• operation method: single button
• flash: 32 MB
• RAM: 256 MB
• video parameters:
• camera: 2 MP HD camera
• night vision: low illumination IR supplement mode:3 m
• BLC: yes
• DNR: yes
• WDR: true WDR
• field of view: horizontal: 144° - vertical: 95°
• video compression: H. 264
• stream: main stream: 1080p @ 30 fps, 720p @ 30 fps; sub stream: 4CIF
• resolution: main stream: 1920 × 1080p, 720p; sub stream: 704 × 576
• motion detection: yes
• anti-flicker frequency: 50 Hz, 60 Hz
• audio parameters:
• audio intercom: two-way audio communication
• audio input: built-in omnidirectional microphone
• audio output: built-in speaker
• audio compression standard: G. 711 U, G. 711 A
• audio compression rate: 64 kbps
• audio quality: noise suppression - echo cancellation
• access control parameters:
• reading frequency: not supported
• relay: 2
• interfaces:
• output: 12 V / 1 A output
• debugging port: 1
• alarm input: 2
• grounding: 1
• two-way interface: 1
• tamper switch: 1
• general:
• IP rating: IP65
• indicator: 3
• power supply: from indoor station
• power consumption: < 10 W
• heater: yes
• working temperature: -40 °C - +60 °C (40 °F - 140 °F)
• working humidity: 10 % - 95 %
• dimensions: 169 x 110 x 31 mm (6.54" x 4.33" x 1.22")
• installation: surface mount, flush mount
• weight: 143 g
• indoor station system parameters:
• memory: 128 MB
• flash: 32 MB
• operation system: embedded Linux operating system
• indoor station display parameters:
• display: 7-inch TFT touch screen
• display resolution: 1024 x 600
• operation method: capacitive touch screen
• brightness: adjustable
• indoor station audio parameters:
• audio input: built-in microphone
• audio output: built-in speaker
• volume: local adjustable
• audio compression standard: G.711 U, G.711 A
• audio quality: noise suppression - echo cancellation
• indoor station network parameters:
• wireless network: Wi-Fi 802.11 b/g/n
• indoor station interfaces:
• two-wire interface: 1
• alarm input: 8
• debugging port: 1 channel reserved
• RS485: 1
• indoor station general:
• power supply: 24 VDC
• power consumption: 8 W
• working temperature: -10 °C - 55 °C (14 °F - 131 °F)
• working humidity: 10% - 90%
• dimensions: 200 × 140 × 23.6 mm (7.87" × 5.51" × 0.93")
• weight: 334.5 g

• EAN: 5410329728694
