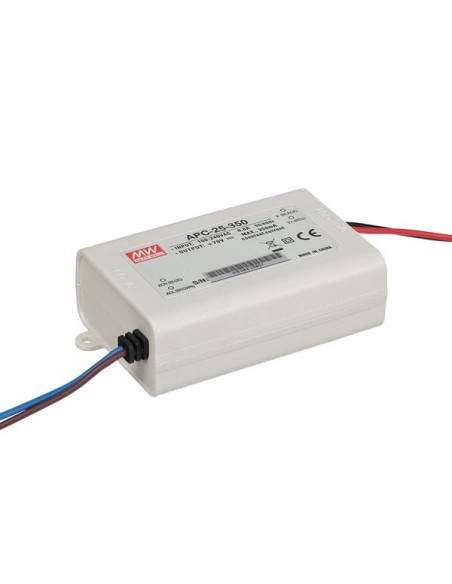

CONSTANT CURRENT LED DRIVER - SINGLE OUTPUT - 350 mA - 25 W
APC-25-350
Available
€24.95
Tax included
CONSTANT CURRENT LED DRIVER - SINGLE OUTPUT - 350 mA - 25 W
Specification(s):
- constant current design
- universal AC input / full range
- withstands 300 VAC surge input for 5 seconds
- protection against: short circuit / overvoltage
- fully isolated plastic case
- small and compact size
- cooling: free air convection
- IP30
- 100 % full load burn-in test
- suitable for LED lighting and moving sign applications
- low cost / high reliability
- 2 years warranty
- Physical properties
- Number of outputs: 1
- Housing type: Enclosed
- Electrical data
- Output current rating: 350 mA
- Output power rating: 24.5 W
- Technical data
- Series: APC
- Input efficiency: 83 %
- Dimmable: No
- Set-up options
- Dimming type: No dimming
- Environmental data
- IP rating: IP30
- Power supply
- Input current rating: 0.4 A
- Input voltage rating VAC: 90-264 V
- Output voltage rating VDC: 25-70 V
- Technology type: Constant current mode
- Input voltage rating VDC: 127-370 V
- Product basic info
- Colour: White
- Depth: 84 mm
- Height: 29.5 mm
- Weight: 140 g
- Width: 57 mm
- EAN: 5410329579838
