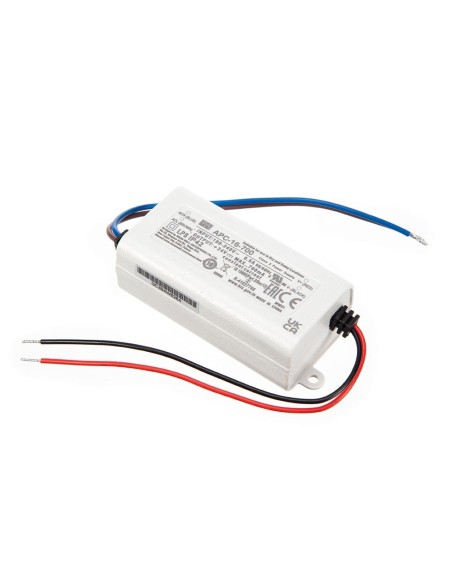

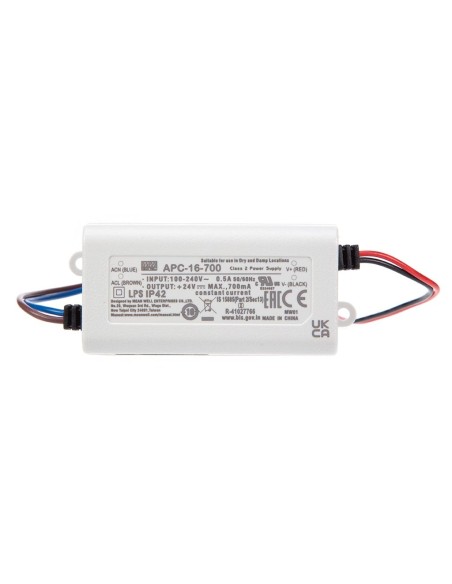

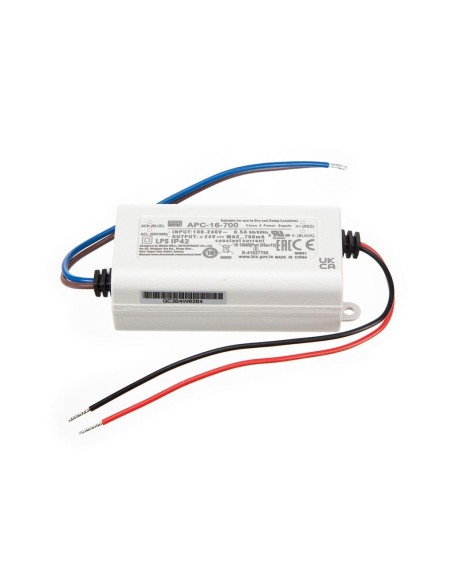

CONSTANT CURRENT LED DRIVER - SINGLE OUTPUT - 700 mA - 16 W

APC-16-700
Available
€14.96
Tax included
CONSTANT CURRENT LED DRIVER - SINGLE OUTPUT - 700 mA - 16 W


Specification(s):
  • constant current design
  • universal AC input / full range
  • meets LPS requirements
  • protection against: short circuit / overvoltage
  • fully isolated plastic case
  • small and compact size
  • cooling: free air convection
  • IP42
  • 100 % full load burn-in test
  • suitable for LED lighting and moving sign applications
  • low cost / high reliability
  • 2 years warranty
  • class II power unit, no FG (frame ground)
Feature(s):
  • Physical properties
  • Number of outputs: 1
  • Housing type: Enclosed
  • Electrical data
  • Output current rating: 700 mA
  • Output power rating: 16.8 W
  • Technical data
  • Series: APC
  • Input efficiency: 83 %
  • Dimmable: No
  • Set-up options
  • Dimming type: No dimming
  • Environmental data
  • IP rating: IP42
  • Power supply
  • Input current rating: 0.3 A
  • Input voltage rating VAC: 90-264 V
  • Output voltage rating VDC: 9-24 V
  • Technology type: Constant current mode
  • Input voltage rating VDC: 127-370 V
  • Product basic info
  • Colour: White
  • Depth: 77 mm
  • Height: 29 mm
  • Weight: 100 g
  • Width: 40 mm


  • EAN: 8720207839235
