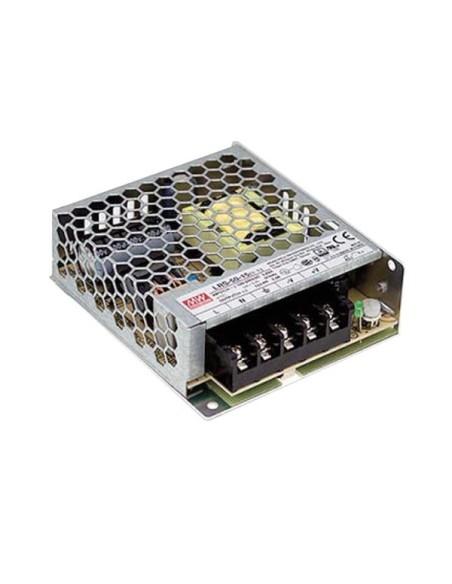

ITE SWITCHING POWER SUPPLY - SINGLE OUTPUT - 50 W - 12 V - CLOSED FRAME - FOR PROFESSIONAL USE ONLY
LRS-50-12
Available
€19.95
Tax included
ITE SWITCHING POWER SUPPLY - SINGLE OUTPUT - 50 W - 12 V - CLOSED FRAME - FOR PROFESSIONAL USE ONLY
Specification(s):
- universal AC input / full range
- withstands 300 VAC surge input for 5 seconds
- no load power consumption < 0.2 W
- miniature size and 1U low profile
- high operating temperature up to 70°C
- cooling by free air convection
- operating altitude up to 5000 m
- withstands 5G vibration test
- high efficiency, long life and high reliability
- 3 years warranty
- protection against: short circuit / overload / overvoltage
- 100% full load burn-in test
- terminal block cover not included
- [b]for professional use only[/b]
- This device must be installed by a qualified person.
- Physical properties
- Number of outputs: 1
- Housing type: Open
- Electrical data
- Output current rating: 4.2 A
- Output power rating: 50 W
- Technical data
- Input efficiency: 86 %
- Mounting type: Screw
- Power supply series: LRS
- Environmental data
- IP rating: IP20
- Usage location: Indoor only
- Power supply
- Input current rating at 115 VAC: 0.95 A
- Input current rating at 230 VAC: 0.56 A
- Input voltage rating VAC: 85-264 V
- Output voltage rating VDC: 12 V
- Range input frequency: 47-63 Hz
- Technology type: Constant voltage mode
- Input voltage rating VDC: 120-373 V
- Product basic info
- Colour: Metal
- Depth: 99 mm
- Height: 30 mm
- Weight: 230 g
- Width: 82 mm
- Material: Metal
- EAN: 8720207897969
