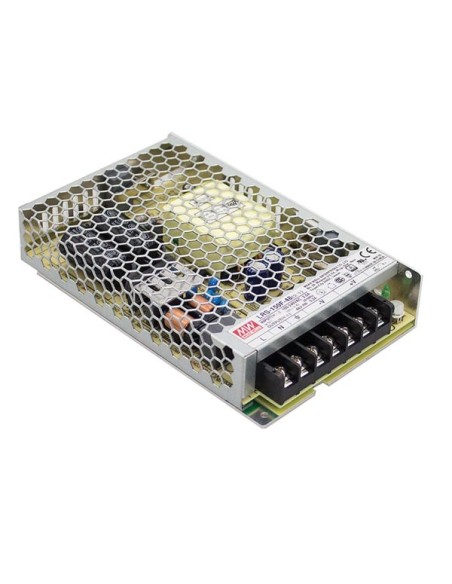

ITE SWITCHING POWER SUPPLY - SINGLE OUTPUT - 150 W - 24 V - CLOSED FRAME - FOR PROFESSIONAL USE ONLY
ITE SWITCHING POWER SUPPLY - SINGLE OUTPUT -...

ITE SWITCHING POWER SUPPLY - SINGLE OUTPUT - 150 W - 24 V - CLOSED FRAME - FOR PROFESSIONAL USE ONLY

LRS-150F-24
Available
€37.96
Tax included
ITE SWITCHING POWER SUPPLY - SINGLE OUTPUT - 150 W - 24 V - CLOSED FRAME - FOR PROFESSIONAL USE ONLY


Specification(s):
  • universal AC input / full range
  • cooling: by free air convection
  • LED indicator for power on
  • 100 % full load burn-in test
  • withstands 300 VAC surge input for 5 seconds
  • high operating temperature up to 70 °C
  • withstands 5G vibration test
  • no load power consumption < 0.5 W
  • high efficiency, long life and high reliability
  • 3 years warranty
  • protection against: short circuit / overload / overvoltage / over temperature
  • miniature size and 1U low profile
  • operating altitude up to 5000 m
  • terminal block cover not included
  • [b]for professional use only[/b]
  • This device must be installed by a qualified person.
Feature(s):
  • Physical properties
  • Number of outputs: 1
  • Housing type: Open
  • Electrical data
  • Output current rating: 6.5 A
  • Output power rating: 150 W
  • Technical data
  • Input efficiency: 89 %
  • Mounting type: Screw
  • Power supply series: LRS
  • Environmental data
  • IP rating: IP20
  • Usage location: Indoor only
  • Power supply
  • Input current rating at 115 VAC: 3 A
  • Input current rating at 230 VAC: 1.7 A
  • Input voltage rating VAC: 85-264 V
  • Output voltage rating VDC: 24 V
  • Range input frequency: 47-63 Hz
  • Technology type: Constant voltage mode
  • Input voltage rating VDC: 120-370 V
  • Product basic info
  • Colour: Metal
  • Depth: 159 mm
  • Height: 30 mm
  • Weight: 480 g
  • Width: 97 mm
  • Material: Metal


  • EAN: 8720207851503
