SWITCHING POWER SUPPLY - SINGLE OUTPUT - 60W - 12 V
SWITCHING POWER SUPPLY - SINGLE OUTPUT - 60W -...

SWITCHING POWER SUPPLY - SINGLE OUTPUT - 60W - 12 V

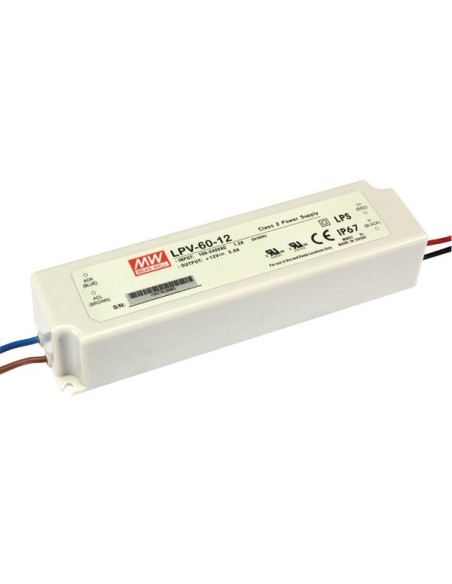

LPV-60-12
Available
€24.95
Tax included
SWITCHING POWER SUPPLY - SINGLE OUTPUT - 60W - 12 V


Specification(s):
  • constant voltage design
  • universal AC input / full range
  • withstands 300 VAC surge input for 5 seconds
  • protection against: short circuit / overload / overvoltage
  • cooling: free air convection
  • fully encapsulated, IP67
  • fully isolated plastic case
  • class II power unit, no FG
  • pass LPS
  • suitable for LED lighting and moving sign applications
  • low cost / high reliability
  • 100% full load burn-in test
  • 2 years warranty
  • short circuit protection
  • overload protection
  • over voltage protection (255V)
  • thermal protection (80°)
  • waterproof protection IP67
Feature(s):
  • Physical properties
  • Number of outputs: 1
  • Housing type: Encapsulated
  • Electrical data
  • Output current rating: 5 A
  • Output power rating: 60 W
  • Technical data
  • Input efficiency: 83 %
  • Mounting type: Screw
  • Power supply series: LPV
  • Environmental data
  • IP rating: IP67
  • Usage location: Indoor & outdoor
  • Power supply
  • Input current rating at 115 VAC: 1.2 A
  • Input current rating at 230 VAC: 1 A
  • Input voltage rating VAC: 90-264 V
  • Output voltage rating VDC: 12 V
  • Range input frequency: 47-63 Hz
  • Technology type: Constant voltage mode
  • Input voltage rating VDC: 127-370 V
  • Product basic info
  • Colour: White
  • Depth: 162.5 mm
  • Height: 42.5 mm
  • Weight: 400 g
  • Width: 32 mm
  • Material: ABS


  • EAN: 8720207873185
