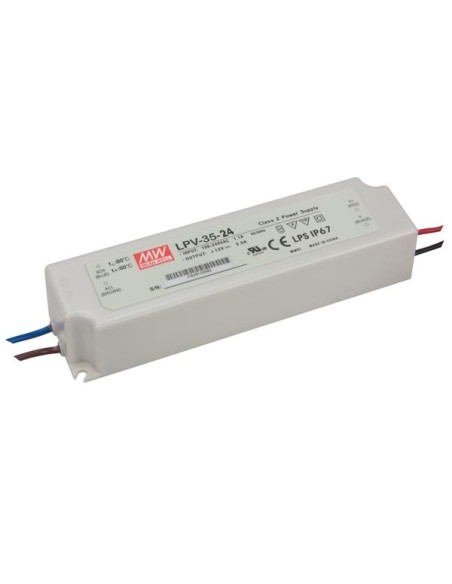

SWITCHING POWER SUPPLY - SINGLE OUTPUT - 35 W - 24 V
LPV-35-24
Available
€22.95
Tax included
SWITCHING POWER SUPPLY - SINGLE OUTPUT - 35 W - 24 V
Specification(s):
- constant voltage design
- universal AC input / full range
- withstands 300 VAC surge input for 5 seconds
- protection against: short circuit / overload / overvoltage
- cooling: free air convection
- fully encapsulated, IP67
- fully isolated plastic case
- class II power unit, no FG
- pass LPS
- suitable for LED lighting and moving sign applications
- low cost / high reliability
- 100% full load burn-in test
- 2 years warranty
- short circuit protection
- overload protection
- over voltage protection (255V)
- thermal protection (80°)
- waterproof protection IP67
- Physical properties
- Number of outputs: 1
- Housing type: Encapsulated
- Electrical data
- Output current rating: 1.5 A
- Output power rating: 35 W
- Technical data
- Input efficiency: 85 %
- Mounting type: Screw
- Power supply series: LPV
- Environmental data
- IP rating: IP67
- Usage location: Indoor & outdoor
- Power supply
- Input current rating at 115 VAC: 1.1 A
- Input current rating at 230 VAC: 0.7 A
- Input voltage rating VAC: 90-264 V
- Output voltage rating VDC: 24 V
- Range input frequency: 47-63 Hz
- Technology type: Constant voltage mode
- Input voltage rating VDC: 127-370 V
- Product basic info
- Colour: White
- Depth: 148 mm
- Height: 30 mm
- Weight: 340 g
- Width: 40 mm
- Material: ABS
- EAN: 8720207813273
