AC-DC MULTI-STAGE DIMMABLE with DALI LED DRIVER - CONSTANT CURRENT - 40 W - SELECTABLE OUTPUT CURRENT WITH PFC
AC-DC MULTI-STAGE DIMMABLE with DALI LED DRIVER...

AC-DC MULTI-STAGE DIMMABLE with DALI LED DRIVER - CONSTANT CURRENT - 40 W - SELECTABLE OUTPUT CURRENT WITH PFC

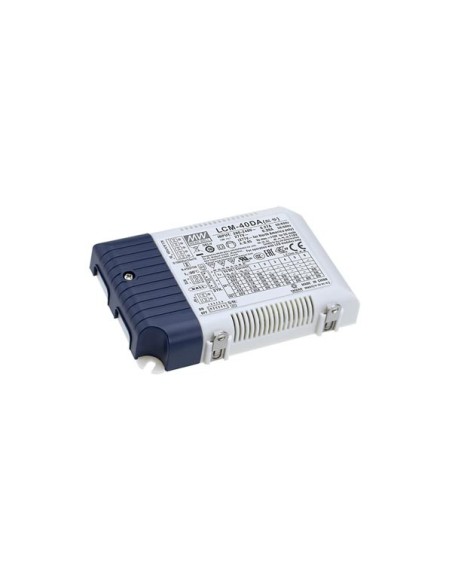

LCM-40DA
Out-of-Stock
€80.96
Tax included
AC-DC MULTI-STAGE DIMMABLE with DALI LED DRIVER - CONSTANT CURRENT - 40 W - SELECTABLE OUTPUT CURRENT WITH PFC


Specification(s):
  • constant Current mode output with multiple levels selectable by dip switch
  • plastic housing with class II design
  • built-in active PFC function
  • standby power consumption < 0.5 W
  • functions:
  • DALI interface (logarithm or linear dimming curve selectable)
  • push dimming
  • synchronization up to 10 units
  • 3 years warranty
  • current level selectable via DIP switch
Feature(s):
  • output:
  • selectable current: 350 mA / 500 mA / 600 mA / 700 mA / 900 mA / 1050 mA
  • DC voltage range: 2-100 V / 2-80 V / 2-67 V / 2-57 V / 2-45 V / 2-40 V
  • rated power: 42 W
  • open circuit voltage: 110 V
  • current ripple: ± 5.0 % max. at rated current
  • current tolerance: ± 5 %
  • auxiliary DC output: nominal 12 V (deviation 11.4 ~ 12.6 V) at 50 mA for AUX-Type only
  • setup time: 500 ms / 230 VAC
  • input:
  • voltage range: 180-295 VAC 254-417 VDC
  • frequency range: 47-63 Hz
  • power factor (typ.): >= 0.975 / 230 VAC; >= 0.96 / 277 VAC at full load
  • total harmonic distortion: lower than 20 % when output load is 75 % or higher
  • efficiency (typ.): 91 %
  • AC current (typ.): 0.23 A / 230 VAC; 0.2 A / 277 VAC
  • inrush current (typ.): cold start 20 A (twidth = 260 µs measured at 50 % Ipeak) at 230 VAC
  • leakage current: < 0.5 mA / 240 VAC
  • standby power consumtion: < 0.5 W for Blank-Type, < 1.2 W for AUX-Type
  • protection:
  • short circuit: constant current limiting, recovers automatically after fault condition is removed
  • overvoltage:
  • 110-130 V
  • protection type: shut down output voltage, re-power on to recover
  • over-temperature: shut down output voltage, re-power on to recover
  • functionality:
  • temperature compensation: by external NTC thermistor (not provided with the power supply)
  • dimming
  • synchronization
  • environment:
  • operating temperature: -30 to +90 °C
  • max. case temperature: +90 °C
  • operating humidity: 20-90 % RH non-condensing
  • storage temperature, humidity: -40 to +80 °C, 10-95 % RH
  • temperature coefficient: ± 0.03 %/°C (0-50 °C)
  • vibration: 10-500 Hz, 2G 10 min/1cycle, period for 60 min each along X, Y, Z axes
  • safety & EMC:
  • safety standards: UL8750, CSA C22.2 No.250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent approved, GB 19510.1, BIS IS15885, EAC TP TC 004 approved
  • DALI standards: comply with IEC62386-101, 102, 207
  • withstand voltage: input to output: 3.75 kVAC
  • isolation resistance: input to output: > 100 Mohm / 500 VDC / 25 °C / 70 % RH
  • EMC emission: compliance to EN55015, EN61000-3-2 Class C (>= 40 % rated power); EN61000-3-3, GB17625.1, GB17743, EAC TP TC 020
  • EMC immunity: compliance to EN61000-4-2,3,4,5,6,8,11, EN61547 light industry level (surge 2 kV), EAC TP TC 020
  • others:
  • MTBF: 193.6K hrs min. MIL-HDBK-217F (25 °C)
  • dimensions (L x W x H): 123.5 x 81.5 x 23 mm
  • packing: 0.24 kg; 54 pcs / 15 kg / 1.12 ft³


  • EAN: 8720207843966
