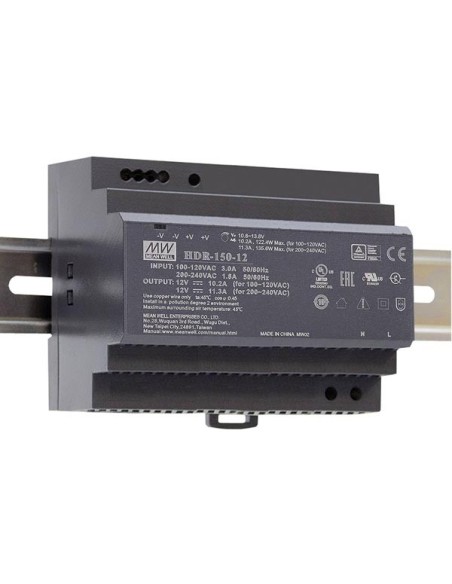

INDUSTRIAL DIN RAIL POWER SUPPLY - SINGLE OUTPUT - 150 W - 12 V
INDUSTRIAL DIN RAIL POWER SUPPLY - SINGLE...

INDUSTRIAL DIN RAIL POWER SUPPLY - SINGLE OUTPUT - 150 W - 12 V

HDR-150-12
Available
€72.95
Tax included
INDUSTRIAL DIN RAIL POWER SUPPLY - SINGLE OUTPUT - 150 W - 12 V


Specification(s):
  • ultra slim design with 105 mm (6SU) width
  • universal input 85 ~ 264 VAC (277 VAC operational)
  • no load power consumption < 0.3 W
  • isolation class II
  • DC output voltage adjustable
  • protections: short circuit / overload / over voltage
  • cooling by free air convection
  • DIN rail TS-35/7.5 or 15 mountable
  • over voltage category III
  • LED indicator for power on
  • 3 years warranty
  • applications:
  • household control system
  • building automation
  • industrial control system
  • factory automation
  • electro-mechanical apparatus
  • [b]for professional use only[/b]
  • This device must be installed by a qualified person.
Feature(s):
  • output:
  • DC voltage: 12 V
  • rated current:
  • 115 VAC: 10.2 A
  • 230 VAC: 11.3 A
  • rated power:
  • 115 VAC: 122.4 W
  • 230 VAC: 135.6 W
  • ripple & noise (max.): 100 mVp-p
  • voltage adj. range: 10.8 - 13.8 V
  • voltage tolerance: ± 2.0 %
  • line regulation: ± 1.0 %
  • load regulation: ± 1.0 %
  • setup, rise time: 500 ms, 60 ms / 230 VAC - 500 ms, 60 ms / 115 VAC at full load
  • hold up time (typ.): 30 ms / 230 VAC - 12 ms / 115 VAC at full load
  • input:
  • voltage range: 85-264 VAC (277 VAC operational) - 120-370 VDC (390 VDC operational)
  • frequency range: 47 - 63 Hz
  • efficiency (typ.): 89 %
  • ac current (typ.): 3 A / 115 VAC - 70 A / 230 VAC
  • inrush current (typ.): cold start 35 A / 115 VAC - 70 A / 230 VAC
  • protection:
  • overload:
  • 105 - 135 % rated output power
  • protection type: constant current limiting withing 50% ~ 100% rated output voltage, recovers automatically after fault condition is removed
  • hiccup mode when output voltage < 50%, recovers automatically after fault condition is removed
  • overvoltage:
  • 14.2 ~ 16.2 V
  • protection type: shut down output voltage, re-power on to recover
  • environment:
  • working temperature: -30 to +70 °C
  • working humidity: 20 to 90 % RH non-condensing
  • storage: -40 to +85 °C, 10 to 95% RH non-condensing
  • temperature coefficient: ± 0.03 %/°C (0 - 45°C ) RH non-condensing
  • vibration: 10 - 500 Hz, 2G 10 min / 1 cycle, 60 min each along X, Y, Z axes; mounting: compliance to IEC60068-2-6
  • operating altitude: 2000 m
  • over voltage category: III, according to EN62368, EN61558, EN50178, EN60664-1, EN62477-1, altitude up to 2000 meters
  • safety & EMC:
  • safety standards: IEC62368-1, UL62368-1, UL61010, TUV EN61558-2-16, EACTPTC004 approved; design refer to EN50178, TUV EN62368-1
  • withstand voltage: input to output: 4 kVAC
  • isolation resistance: input to output: 100 MOhm / 500 VDC / 25 °C / 70 % RH
  • EMC emission:
  • conducted: EN55032 (CISPR32) / Class B
  • radiated: EN55032 (CISPR32) / Class B
  • harmonic current: EN61000-3-2 / Class A
  • voltage flicker: EN61000-3-3
  • EMC immunity:
  • ESD: EN61000-4-2 / Level 3, 8KV air - Level 2, 4KV contact - criteria A
  • radiated susceptibility: EN61000-4-3 / Level 3 - criteria A
  • EFT/Burest: EN61000-4-4 / Level 3 - criteria A
  • surge: EN61000-4-5 / Level 4, 2KV/L-N - criteria A
  • conducted: EN61000-4-6 / Level 3 - criteria A
  • magnetic field: EN61000-4-8 / Level 4, criteria A
  • voltage dips and interruptions: EN61000-4-11 / >95% dip 0.5 periods, 30% dip 25 periods - >95% interruptions 250 periods
  • other:
  • MTBF: 536 hrs min. MIL-HDBK-217F (25 °C)
  • dimensions: 105 x 90 x 54.5 mm (W x H x D)


  • EAN: 5410329713706
