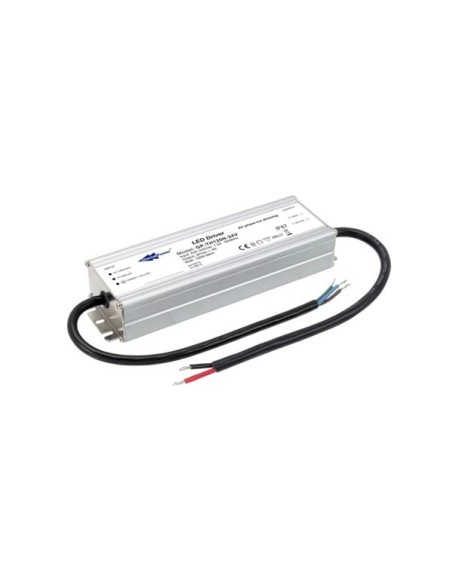

CONSTANT VOLTAGE LED POWER SUPPLY - 120 W 24 A 5 A with TRIAC DIMMING
GP-TH120N-24V
Available
€99.96
Tax included
CONSTANT VOLTAGE LED POWER SUPPLY - 120 W 24 A 5 A with TRIAC DIMMING
Specification(s):
- AC phase-cut dimming
- input range: 205-256 V~
- constant voltage design
- work with leading edge and trailing edge TRIAC dimmers
- fully potted suitable for dry and damp location applications
- protections: over current / short circuit / over voltage / over temperature
- IP67 design for indoor or outdoor installations
- class I power unit, with FG
- suitable for 24 V LED strip appliances
- 3 years warranty
- Physical properties
- Wire length: 26 cm
- Number of outputs: 1
- Housing type: Enclosed
- Electrical data
- Output current rating: 5 A
- Output power rating: 120 W
- Output efficiency: 84 %
- Technical data
- Series: GP
- Mounting type: Screw
- Dimmable: Yes
- Set-up options
- Dimming type: TRIAC dimming
- Dimming range: 1-100 %
- Environmental data
- IP rating: IP67
- Power supply
- Input current rating: 1.2 A
- Input voltage rating VAC: 205-256 V
- Output voltage rating VDC: 24 V
- Technology type: Constant voltage mode
- Product basic info
- Colour: Silver
- Depth: 222 mm
- Height: 39 mm
- Weight: 1027 g
- Width: 68 mm
- Material: ABS
- EAN: 5410329726966
