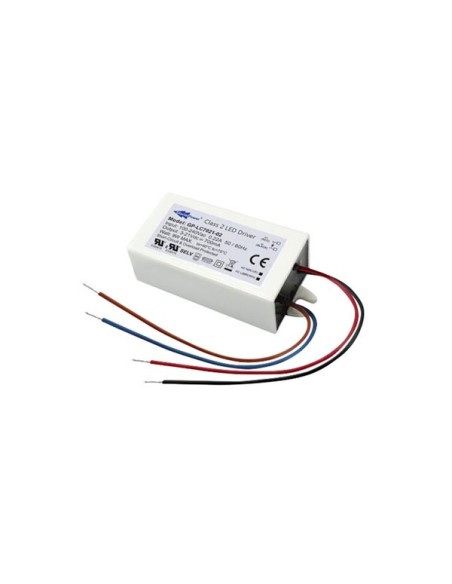

LED POWER SUPPLY SINGLE OUTPUT 21 VDC 9 W
GP-LC7021-02
Available
€15.96
Tax included
LED POWER SUPPLY SINGLE OUTPUT 21 VDC 9 W
Specification(s):
- universal AC Input 90 - 264 V~
- constant current operation
- fully isolated plastic case with IP65
- built-in constant current limiting design
- operation from -10 °C - 40 °C
- protections: OVP / OLP / SCP
- class II power design without earth pin
- for high brightness light-emitting diode products
- Physical properties
- Number of outputs: 1
- Housing type: Enclosed
- Electrical data
- Output current rating: 0.66-0.74 A
- Output current rating: 0.74 A
- Output power rating: 9 W
- Output efficiency: 75 %
- Technical data
- Mounting type: Screw
- Power supply series: GP
- Environmental data
- IP rating: IP65
- Usage location: Indoor & outdoor
- Power supply
- Input current rating at 115 VAC: 0.2 A
- Input current rating at 230 VAC: 0.1 A
- Input voltage rating VAC: 90-264 V
- Output voltage rating VDC: 21 V
- Range input frequency: 47-63 Hz
- Technology type: Constant current mode
- Product basic info
- Colour: White
- Depth: 73 mm
- Height: 23 mm
- Weight: 97.7 g
- Width: 35 mm
- Material: ABS
- EAN: 5410329728786
