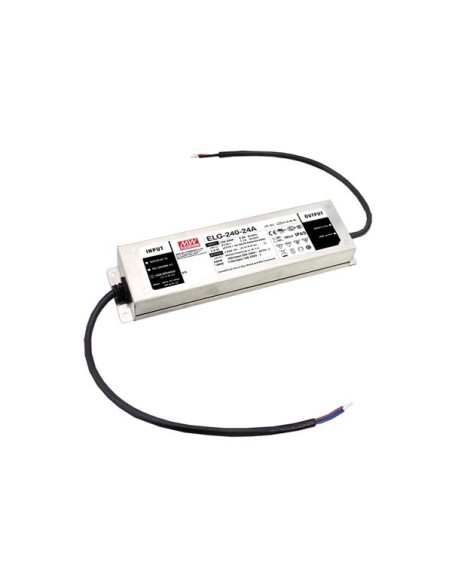

AC-DC SINGLE OUTPUT LED DRIVER WITH PFC - 3 WIRE INPUT - OUTPUT 24 VDC at 10A
ELG-240-24A-3Y
Available
€90.96
Tax included
AC-DC SINGLE OUTPUT LED DRIVER WITH PFC - 3 WIRE INPUT - OUTPUT 24 VDC at 10A
Specification(s):
- constant voltage + constant current mode output
- metal housing design
- : built-in active PFC function
- no load / standby power consumption <0.5W
- IP65 rating for indoor or outdoor installations
- function: Io and Vo adjustable through built-in potentiometer
- typical lifetime > 50.000 hours
- 5 years warranty
- Io and Vo adjustable through built-in potentiometer
- [b]for professional use only[/b]
- This device must be installed by a qualified person.
- Physical properties
- Number of outputs: 1
- Housing type: Enclosed
- Electrical data
- Output current rating: 5-10 A
- Output current rating: 10 A
- Output power rating: 240 W
- Technical data
- Input efficiency: 92 %
- Mounting type: Screw
- Power supply series: ELG
- Environmental data
- IP rating: IP65
- Usage location: Indoor & outdoor
- Power supply
- Input current rating at 115 VAC: 2.2 A
- Input current rating at 227 VAC: 1.2 A
- Input current rating at 230 VAC: 1.5 A
- Input voltage rating VAC: 100-305 V
- Output voltage rating VDC: 24 V
- Range input frequency: 47-63 Hz
- Technology type: Constant current mode, Constant voltage mode
- Input voltage rating VDC: 142-431 V
- Product basic info
- Colour: Metal
- Depth: 244 mm
- Height: 37.5 mm
- Weight: 1220 g
- Width: 71 mm
- Material: Metal
- EAN: 8720207831598
