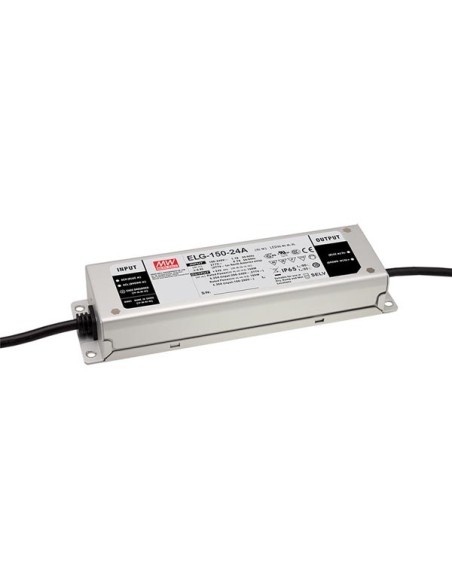

SWITCHING POWER SUPPLY - SINGLE OUTPUT - 150 W - 24 V - 3Y
SWITCHING POWER SUPPLY - SINGLE OUTPUT - 150 W...

SWITCHING POWER SUPPLY - SINGLE OUTPUT - 150 W - 24 V - 3Y

ELG-150-24A-3Y
Available
€84.95
Tax included
SWITCHING POWER SUPPLY - SINGLE OUTPUT - 150 W - 24 V - 3Y


Specification(s):
  • constant voltage + constant current mode output
  • metal housing design with functional ground
  • : built-in active PFC function
  • class 2 power unit
  • no load / standby power consumption <0.5W
  • IP65 rating for indoor or outdoor installations
  • function options: Io and Vo adjustable through built-in potentiometer
  • typical lifetime > 50.000 hours
  • 5 years warranty
  • [b]for professional use only[/b]
  • This device must be installed by a qualified person.
Feature(s):
  • Physical properties
  • Number of outputs: 1
  • Housing type: Enclosed
  • Electrical data
  • Output current rating: 3.2-6.25 A
  • Output current rating: 6.25 A
  • Output power rating: 150 W
  • Technical data
  • Input efficiency: 89 %
  • Mounting type: Screw
  • Power supply series: ELG
  • Environmental data
  • IP rating: IP65
  • Usage location: Indoor & outdoor
  • Power supply
  • Input current rating at 115 VAC: 1.7 A
  • Input current rating at 227 VAC: 0.7 A
  • Input current rating at 230 VAC: 0.9 A
  • Input voltage rating VAC: 100-305 V
  • Output voltage rating VDC: 24 V
  • Range input frequency: 47-63 Hz
  • Technology type: Constant current mode, Constant voltage mode
  • Input voltage rating VDC: 142-431 V
  • Product basic info
  • Colour: Metal
  • Depth: 219 mm
  • Height: 35.5 mm
  • Weight: 950 g
  • Width: 63 mm
  • Material: Metal


  • EAN: 8720207847995
