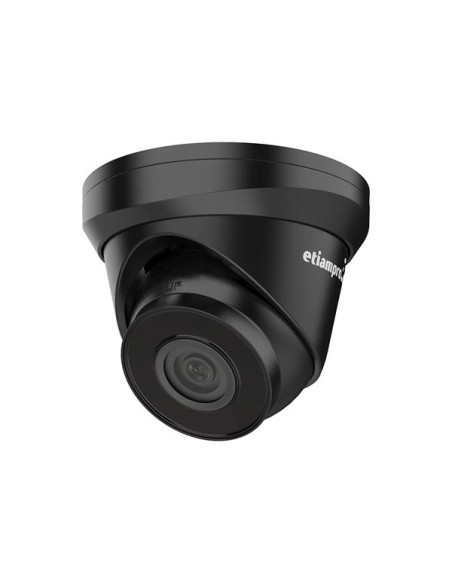

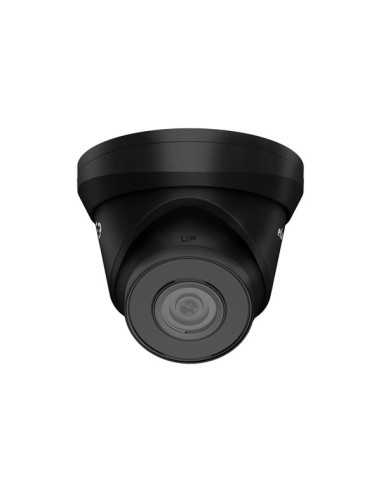

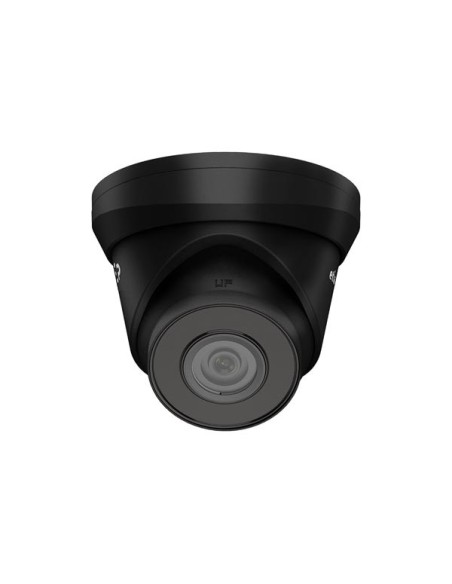

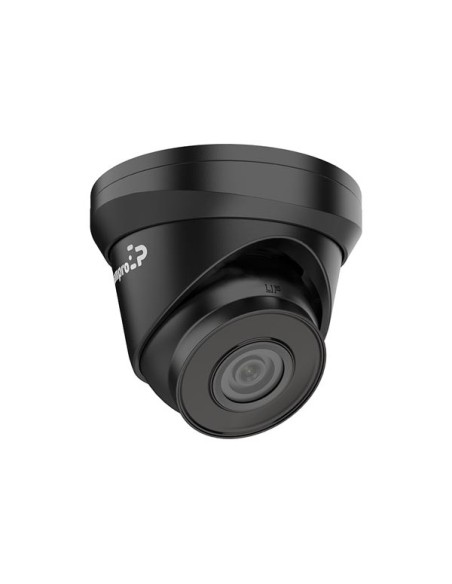

4 MP FIXED NETWORK TURRET CAMERA (IP) - BLACK
ECAMIP102B
Available
€109.90
Tax included
4 MP FIXED NETWORK TURRET CAMERA (IP) - BLACK
4 megapixel IP indoor/outdoor turret-type camera. The camera has high power IR LEDs built-in for night surveillance up to 30 meter. With its Wide Dynamic Range (WDR) technology image fidelity without detail loss is guaranteed. Optimal compression supporting H.265+. With no difficult IP setup and only one cable for power and data, the PoE feature connects cameras and NVRs quickly and easily.
Specification(s):
Specification(s):
- [b]camera with solid premium aluminium base and plastic decorative ring[/b]
- 1/3" progressive scan CMOS
- 2560 x 1440 @20 fps
- 2.8 mm fixed lens
- H. 265+ / H. 265 / H. 264+ / H. 264 video formats
- 3D DNR
- up to 30 m IR range
- IP67
- various applications
- Android app: [link url=https://play.google.com/store/apps/details?id=com.mcu.guardingvision&hl=nl&gl=US]Guarding Vision[/link]
- iOS app: [link url=https://apps.apple.com/us/app/guarding-vision/id1101697283#?platform=iphone]Guarding Vision[/link]
- Windows software: [link url=https://www.velleman.eu/support/downloads/?code=ENVR104]Guarding Vision[/link]
- iOS software: [link url=https://www.velleman.eu/support/downloads/?code=ENVR104]Guarding Vision[/link]
- camera:
- image sensor: 1/3" progressive scan CMOS
- min. illumination: colour: 0.01 lux @ F2.0 (AGC on)
- shutter speed: 1/3 s - 1/100,000 s
- slow shutter: yes
- auto-iris: no
- day & night: IR cut filter
- digital noise reduction: 3D DNR
- WDR: 120 dB true WDR
- angle adjustment: pan: 0° - 360°, tilt: 0° - 75°, rotation: 0° - 360°
- lens:
- focal length: 2.8 mm
- aperture: F2.0
- focus: fixed
- field of view: 2.8 mm, horizontal 98°, vertical 53.1°, diagonal 114.7°
- lens mount: M12
- IR:
- max. IR range: 30 m
- wavelength: 850 nm
- compression standard:
- video compression: main stream: H. 265+ / H. 265 / H. 264+ / H. 264: sub stream: H. 265 / H. 264 / MJPEG
- H.264 type: main profile / high profile / baseline profile
- H. 265 type: main profile
- video bit rate: 32 kbps - 8 Mbps
- smart feature set
- region of interest: 1 fixed region for main stream and sub-stream
- image:
- max. resolution: 2560 x 1440
- main stream: 50 Hz: 20 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
- max. frame rate: 60 Hz: 20 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
- sub-stream: 50 Hz: 25 fps (640 x 480, 640 x 360)
- max. frame rate: 60 Hz: 30 fps (640 x 480, 640 x 360)
- image enhancement: BLC, 3D DNR
- image settings: saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- day/night switch: auto/scheduled, day, night
- network:
- alarm trigger: motion detection, video tampering alarm, illegal login
- protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
- general functions: anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
- firmware version: V5.5.120
- API: ONVIF (PROFILE S), ISAPI
- simultaneous live view: up to 6 channels
- user/host: up to 32 users; 3 levels: Administrator - Operator - User
- web browser: IE10+, Chrome 57.0+, Firefox 52.0+
- interface:
- network interface: 1 RJ45 10/100 Mbps self-adaptive Ethernet port
- general:
- operating conditions: -30 °C - 60 °C (-22 °F - 140 °F), humidity 95 % or less (non-condensing)
- power supply: 12 VDC ± 25%, 5.5 mm coaxial power plug; PoE (802.3af, class 3)
- power consumption and current: 12 VDC, 0.4 A, max: 6,5 W; PoE: (802.3af, 36 V - 57 V), 0.2 A - 0.15 A, Max: 6.5 W
- IP rating: IP67
- material: metal
- dimensions: Ø 128 mm x 117 mm (Ø 5.04" x 4.6")
- weight: 360 g (0.8 lb.)
- EAN: 5410329736255
