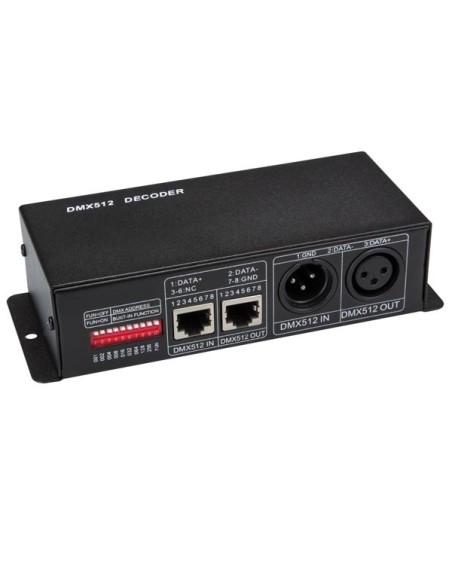

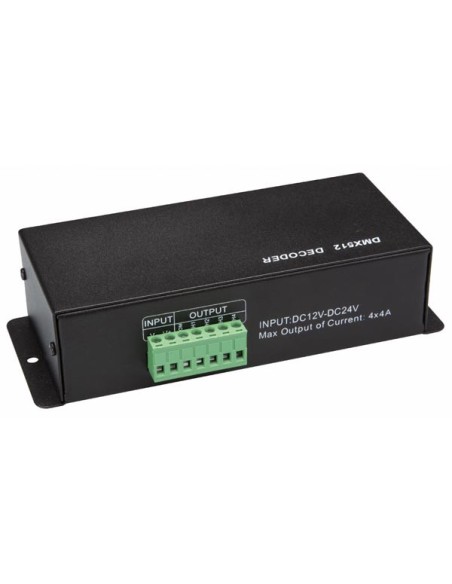

DMX CONTROLLER FOR LED STRIPS - 4 CHANNELS
DMX CONTROLLER FOR LED STRIPS - 4 CHANNELS
DMX CONTROLLER FOR LED STRIPS - 4 CHANNELS
DMX CONTROLLER FOR LED STRIPS - 4 CHANNELS

DMX CONTROLLER FOR LED STRIPS - 4 CHANNELS

LEDC09
Out-of-Stock
€71.96
Tax included
DMX CONTROLLER FOR LED STRIPS - 4 CHANNELS


Specification(s):
  • 4 channel DMX controller for LED strips
  • single colour: 4 times
  • RGBW: red - green - blue - white
  • DMX or auto program selection via DIP switches
Feature(s):
  • Physical properties
  • Number of channels: 4
  • Light colour range LED: RGBW, Single colour
  • Number of outputs: 4
  • Electrical data
  • Maximum current rating: 16 A
  • Output power rating 12 V: <  192 W
  • Output power rating 24 V: <  384 W
  • LED dimmer output type: SPI (TTL)
  • Overload protection: No
  • Reverse polarity: No
  • PWM frequency rating: ± 2600 Hz
  • Technical data
  • Mounting type: Screw, Surface mount
  • Greyscale levels: 256
  • Dimming curve: Linear
  • Set-up options
  • Driver configuration: DIP switches
  • Environmental data
  • IP rating: IP20
  • Usage location: Indoor only
  • Operating temperature: -30-55 °C
  • Operational properties
  • Instruction manual languages: Dutch, English, French, German, Spanish
  • Restart after protection: No
  • IT connections
  • Connection type: 3-pin XLR
  • Power supply
  • Input voltage rating VDC: 12-24 V
  • Included
  • Power adapter/charger: No
  • Product basic info
  • Colour: Black
  • Additional colour: Green, Red
  • Depth: 165 mm
  • Height: 40 mm
  • Weight: 330 g
  • Width: 68 mm
  • Material: Metal
  • Additional material: ABS


  • EAN: 5410329569679
