MORNSUN, is a leading industrial power supply manufacturer and produces high-quality products. The company was founded in 1998.

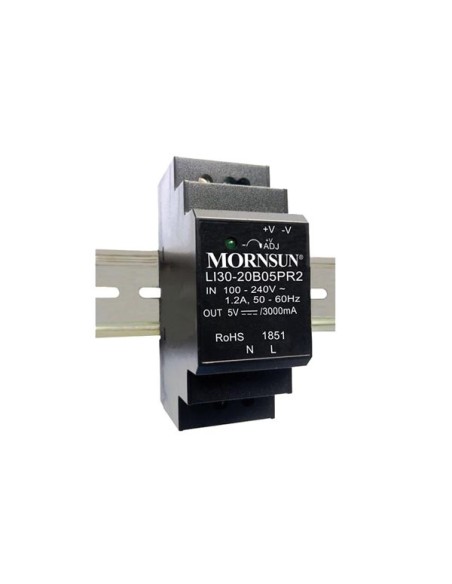

This industrial DIN-rail power supply from Mornsun is a cost-effective, energy-efficient solution for standard DIN-rail mounting. The products offer a high level of stability and comply with international IEC62368 standards for EMC and safety standards meet IEC/EN61000-4, CISPR32/EN55032, UL62368, EN62368, IEC/EN61010, IEC/EN61558 and IEC60335.
Specification(s):
Specification(s):
- Operating ambient temperature range -30 °C to +70 °C.
- High I/O isolation voltage up to 4000 VAC.
- Industrial-grade design.
- Low standby power consumption, high efficiency.
- Low ripple & noise.
- Output short circuit, over-current & over-voltage protection.
- DIN-rail TS35X7.5/TS35X15 mountable.
- Over-voltage class III (EN61558-1 standards).
- Safety according to UL/IEC62368, IEC/EN61010, IEC60335, IEC/EN61558.
- Physical properties
- Number of outputs: 1
- Electrical data
- Output current rating: 2 A
- Output power rating: 24 W
- Technical data
- Mounting type: DIN-rail mounting
- Input efficiency: 88 %
- Power supply series: LI
- Environmental data
- IP rating: IP20
- Usage location: Indoor only
- Operational properties
- Instruction manual languages: English
- Power supply
- Output voltage rating VDC: 12 V
- Input voltage rating VAC: 85-264 V
- Input voltage rating VDC: 120-370 V
- Input current rating at 115 VAC: 0.9 A
- Input current rating at 230 VAC: 0.5 A
- Input frequency: 47-63 Hz
- Product basic info
- Colour: Black
- Depth: 58 mm
- Height: 92.66 mm
- Width: 35 mm
- Weight: 115 g
- Material: ABS, heat resistant (UL94V-0)
- EAN: 5410329756444
