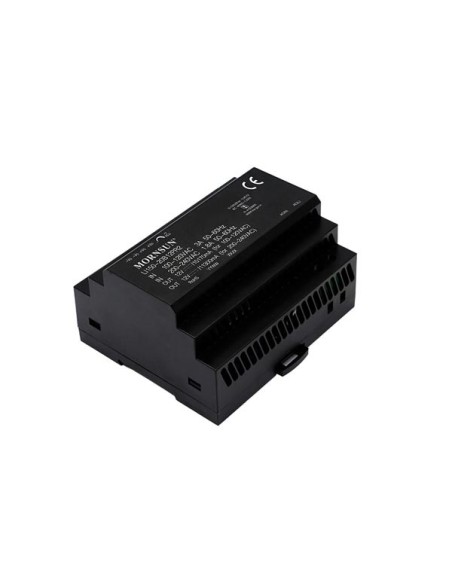

Industrial DIN-rail power supply - single output - 150 W - 24 V - 6.25 A
Industrial DIN-rail power supply - single...

Industrial DIN-rail power supply - single output - 150 W - 24 V - 6.25 A

LI150-20B24PR2


MORNSUN, is a leading industrial power supply manufacturer and produces high-quality products. The company was founded in 1998. This industrial DIN-rail power supply from Mornsun is a cost-effective, energy-efficient solution for standard DIN-rail mounting. The products offer a high level of stability and comply with international IEC62368 standards for EMC and safety standards meet IEC/EN61000-4, CISPR32/EN55032, UL62368, EN62368, IEC/EN61010, IEC/EN61558 and IEC60335.

Specification(s):
  • Operating ambient temperature range -30 °C to +70 °C.
  • High I/O isolation voltage up to 4000 VAC.
  • Industrial-grade design.
  • Low standby power consumption, high efficiency.
  • Low ripple & noise.
  • Output short circuit, over-current & over-voltage protection.
  • DIN-rail TS35X7.5/TS35X15 mountable.
  • Over-voltage class III (EN61558-1 standards).
  • Safety according to UL/IEC62368, IEC/EN61010, IEC60335, IEC/EN61558.
Feature(s):
  • Physical properties
  • Number of outputs: 1
  • Electrical data
  • Output current rating: 6.25 A
  • Output power rating: 150 W
  • Technical data
  • Mounting type: DIN-rail mounting
  • Input efficiency: 91.5 %
  • Power supply series: LI
  • Environmental data
  • IP rating: IP20
  • Usage location: Indoor only
  • Operational properties
  • Instruction manual languages: English
  • Power supply
  • Output voltage rating VDC: 24 V
  • Input voltage rating VAC: 85-264 V
  • Input voltage rating VDC: 120-370 V
  • Input current rating at 115 VAC: 3 A
  • Input current rating at 230 VAC: 1.8 A
  • Input frequency: 47-63 Hz
  • Product basic info
  • Colour: Black
  • Depth: 58 mm
  • Height: 90 mm
  • Width: 105 mm
  • Weight: 330 g
  • Material: ABS, heat resistant (UL94V-0)


  • EAN: 5410329756437
