2 x 30 W AUDIO POWER AMPLIFIER
WSAH4003
Out-of-Stock
€19.90
Tax included

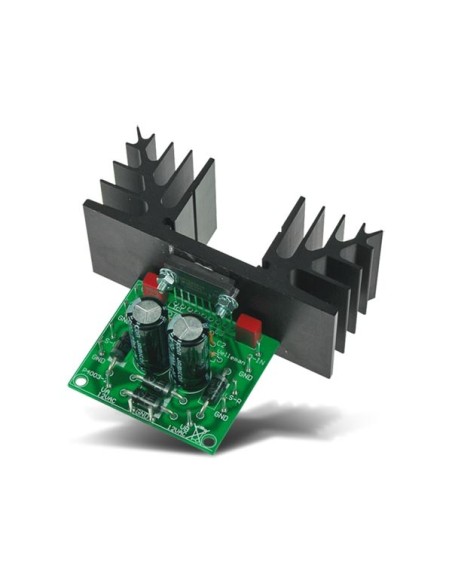

2 x 30 W AUDIO POWER AMPLIFIER
This small amplifier is constructed with the TDA2616 IC, with a maximum supply capability of 2 x 15Wrms (4 ohm) or 2 x 10Wrms (8 ohm). The IC is protected against overheating and short circuits. Additional rectifier and smoothing filter are unnecessary because alternating current can be connected directly with the unit.
Specification(s):
Specification(s):
- exists also in mounted version: [product name=VM113]vm113[/product]
- Technical data
- Specifications:
- music power output: 2 x 30 W / 4 Ohm
- RMS output: 2 x 15 Wrms / 4 Ohm or 2 x 10 Wrms / 8 Ohm
- total harmonic distortion: 0.07 % (1 W / 1 kHz)
- channel separation: 70 dB
- frequency response: 7 Hz to 60 kHz (-3 dB)
- signal-to-noise ratio: 98 dB (A-weighted)
- input sensitivity: 300 mV / 150 kOhm
- transient suppression on/off switch
- overload and short-circuit protection: max. 1 h
- supply voltage: 2 x 12 Vac / 2 A (50 W transfo recommended)
- Operational properties
- Instruction manual languages: Dutch, English, French, German, Spanish
- Coding skill level: none
- Electronics skill level: 1
- Mechanics skill level: 2
- Soldering skill level: 2
- Product basic info
- Colour: Green
- Depth: 50 mm
- Weight: 176 g
- Width: 70 mm
- EAN: 5410329730420
