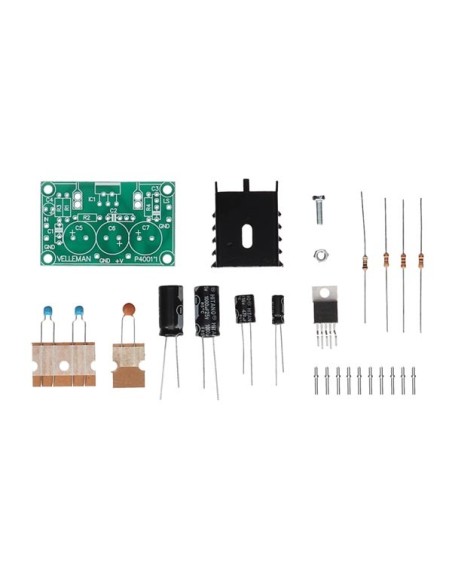

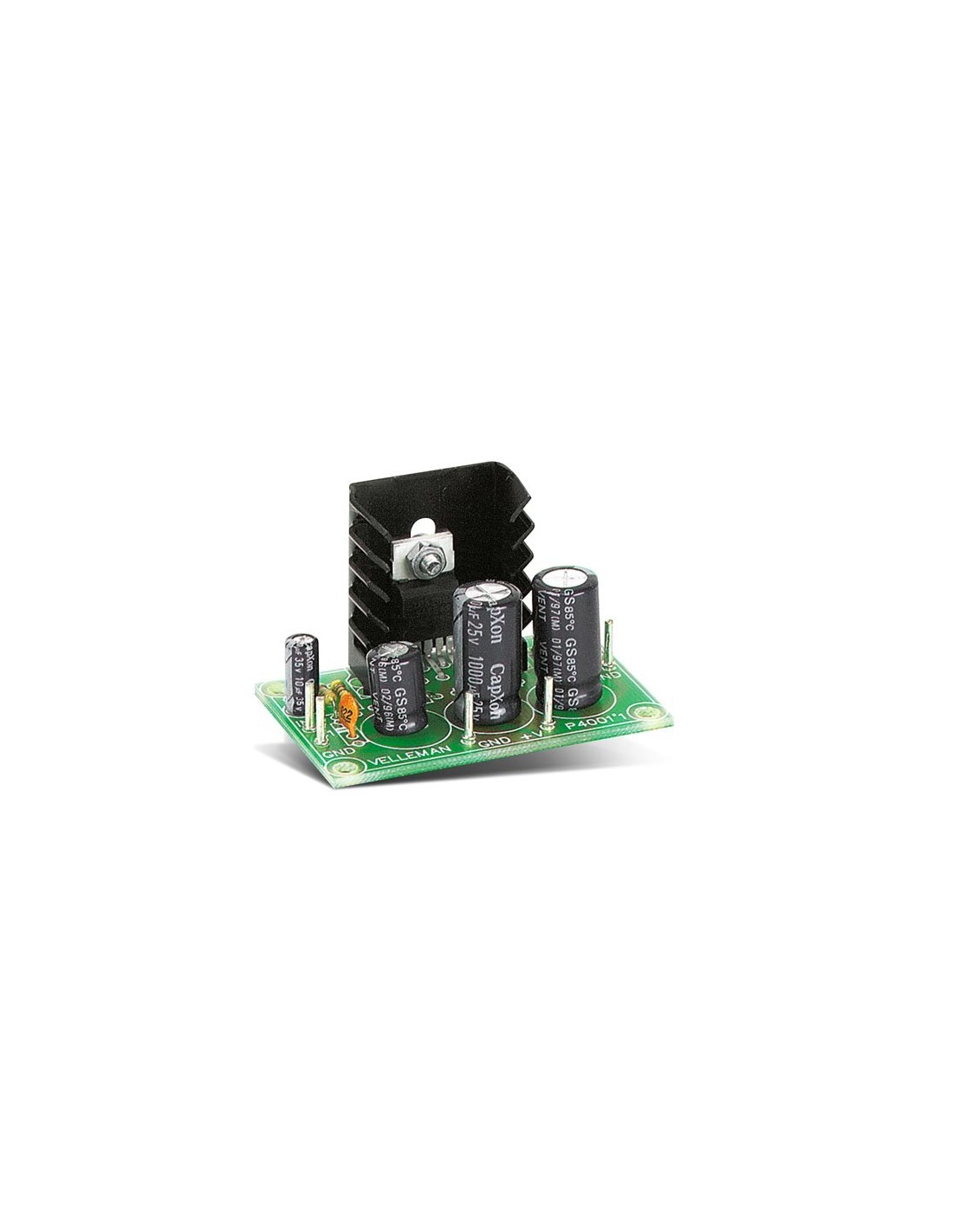

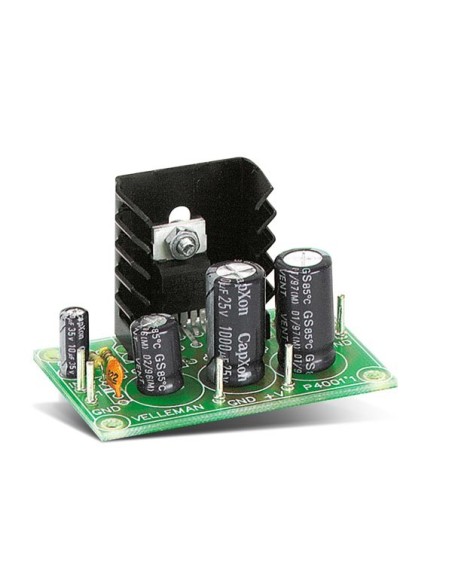

This small amplifier is constructed around the TDA2003 IC, capable of delivering 4Wrms at 4 ohms. The IC is fully protected against overheating and short circuits. A conventional direct current is sufficient as power supply.
Specification(s):
Specification(s):
- exists also in mounted version: [product name=WMAH114][/product]
- Technical data
- Specifications:
- music power output: 7 W / 4 Ohm
- RMS output: 3.5 W / 4 Ohm or 2 W / 8 Ohm
- total harmonic distortion: 0.05 % (1 W / 1 kHz)
- frequency response: 20 Hz to 20 kHz (-3 dB)
- signal-to-noise ratio: 86 dB (A-weighted)
- input sensitivity: 40 mV / 150 KOhm
- overload and short-circuit protected
- supply voltage: 15 VDC (8 to 18 VDC possible) / 0.5 A
- Operational properties
- Instruction manual languages: Dutch, English, French, German, Spanish
- Coding skill level: none
- Electronics skill level: 1
- Mechanics skill level: 1
- Soldering skill level: 2
- Product basic info
- Colour: Green
- Depth: 35 mm
- Weight: 42 g
- Width: 55 mm
- EAN: 5410329733155
