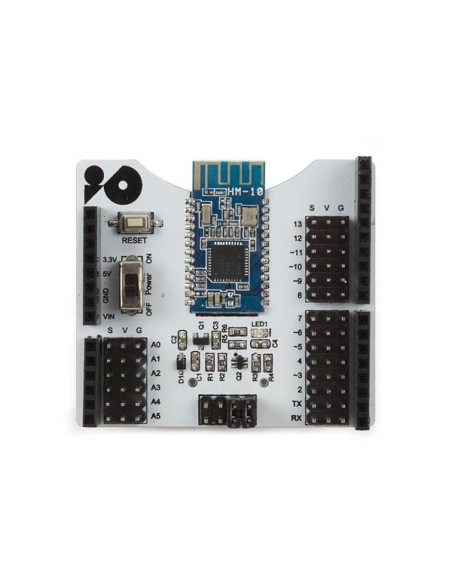

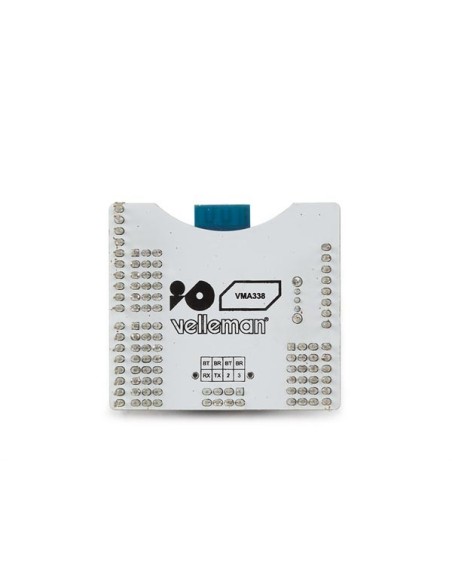

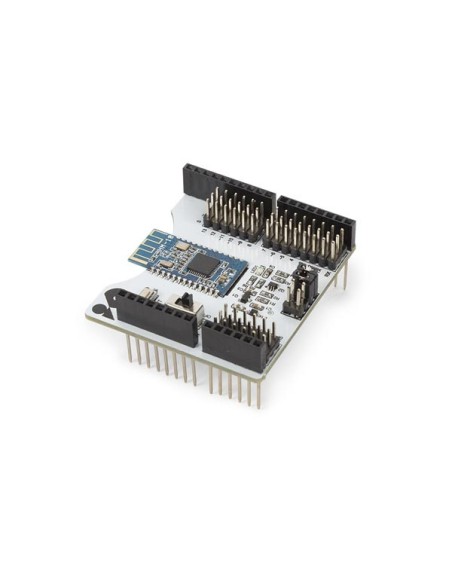

HM-10 WIRELESS SHIELD FOR ARDUINO® UNO


The shield uses a HM-10 module with Texas Instruments® CC2541 Bluetooth v4.0 BLE chip, fully compatible with the Arduino UNO. This shield has extended all the digital and analog pins out into 3PIN, making it easy to connect to sensors using 3PIN wire.

Specification(s):
  • extends 14 digital pins to 3pin
  • extends 6 analog pins to 3pin
  • on-board reset button
  • comes with a slide switch to power wireless communication on or off
  • jumper interface to control serial communication
  • integrated Texas Instruments® CC2541 Bluetooth v4.0 chip on board
Feature(s):
  • pin header spacing: 2.54 mm
  • Bluetooth® chip: Texas Instruments® CC2541
  • USB protocol: USB V2.0
  • working frequency: 2.4 GHz ISM band
  • modulation method: GFSK (Gaussian Frequency Shift Keying)
  • transmission power: -23 dbm, -6 dbm, 0 dbm, 6 dbm, can be modified by AT command
  • sensitivity: =-84 dBm at 0.1% BER
  • transmission rate: asynchronous 6K bytes
  • security: authentication and encryption
  • supporting service: central & peripheral UUID FFE0, FFE1
  • power consumption: 400-800 uA during standby, 8.5 mA during transmission
  • power supply shield: 5 VDC
  • power supply HM10: 3.3 VDC
  • working temperature: -5 to +65 °C
  • dimensions: 54 x 48 x 23 mm
  • weight: 19 g


  • EAN: 5410329730314
