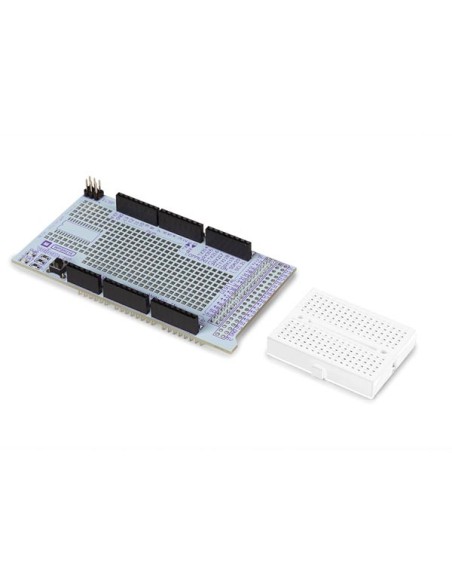

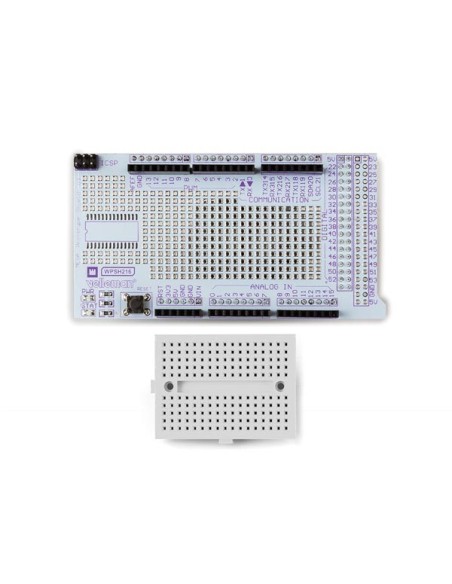

PROTOSHIELD PROTOTYPING BOARD WITH MINI BREADBOARD FOR ARDUINO® MEGA

This prototyping board makes it easy for you to design custom circuits and solder electronics directly onto it! The board is conveniently designed with a spacious prototyping area for both connected and non-connected through-hole components. There is even a soldering position reserved for an SMD chip! You can easily solder SMD ICs on the prototyping area to test them with your Arduino microcontroller. The board also extends out a row of power and ground through-holes, giving enough port resources. Also included is a 170-holes breadboard that you can stick onto the prototyping area.

Specification(s):

• compatible with the MEGA 2560 control board and Arduino compatible
• extends 5 V, 3 V and Arduino Vin pins
• on-board reset button
• on-board power LED and D13 status LED
• extends ICSP interface
• extends all control pins and power pins of Arduino
• easy prototyping
• tiny 170-hole breadboard included
• 28-pin IC interface possible

Feature(s):

• dimensions: 106 x 56 x 19 mm
• weight: 27,2 g (only MEGA protoshield)

• EAN: 5410329732455
