L293D MOTOR DRIVE EXPANSION SHIELD FOR ARDUINO®

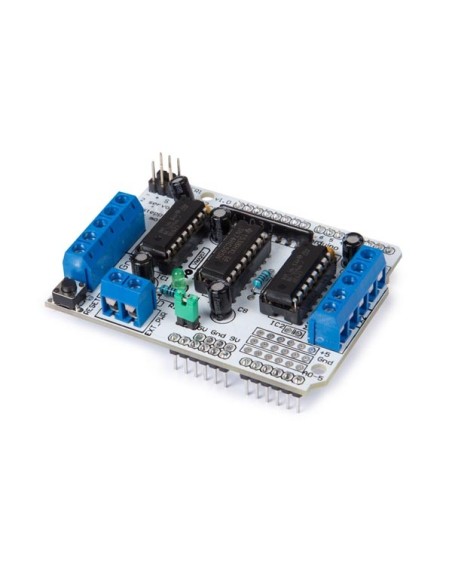

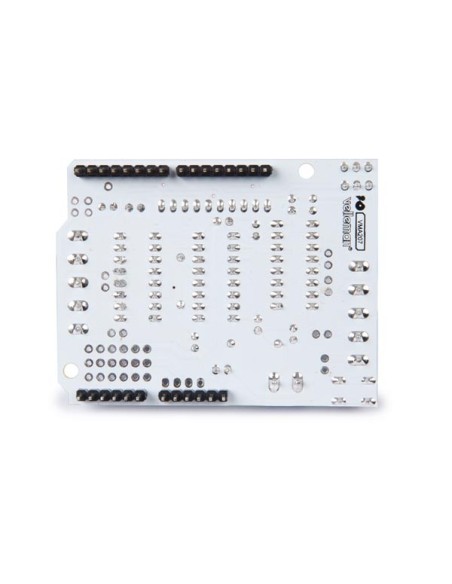

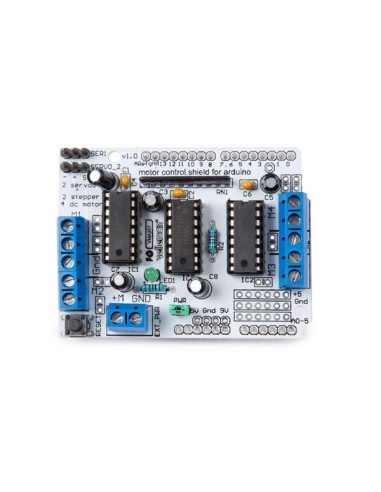

This motor shield contains two motor drivers and a 74HC595 shift register and extends the pins on the Arduino from 3 to 8, which allows controlling the direction for the motor drivers.

Specification(s):
  • two L293D motor driver chips
  • four H-bridges
  • 0.6 A per bridge (1.2 A peak)
  • thermal shutdown protection
  • internal kickback protection diodes
  • up to 4 bi-directional DC motors
  • up to 2 stepper motors
  • pull down resistors to keep motors disabled during power-up
  • separate logic and motor power connections
  • terminal block connectors for motors and power
  • motor voltages from 4.5 VDC to 16 VDC
  • 2 connections for 5 V hobby servos
Feature(s):
  • dimensions: 6.8 cm x 5.5 cm x 2 cm


  • EAN: 5410329730284
