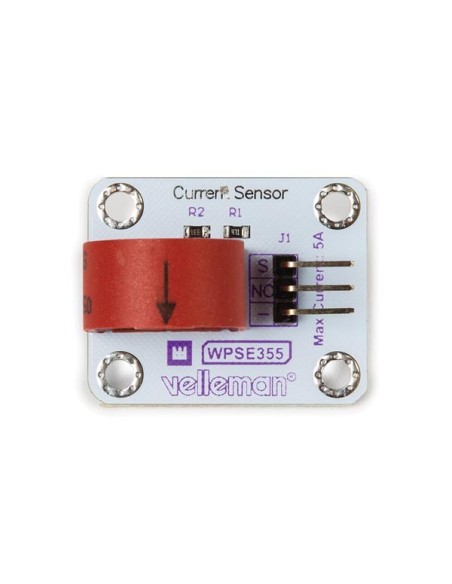

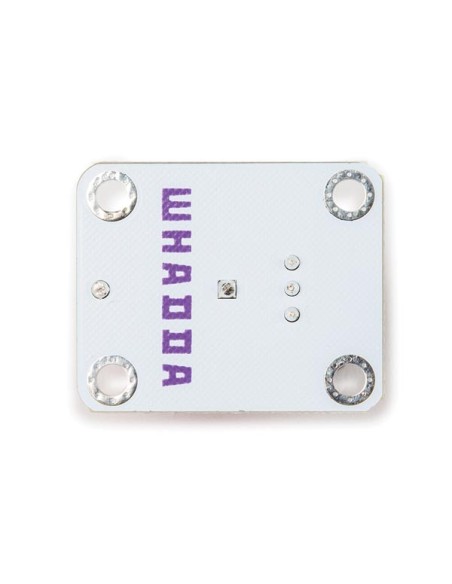

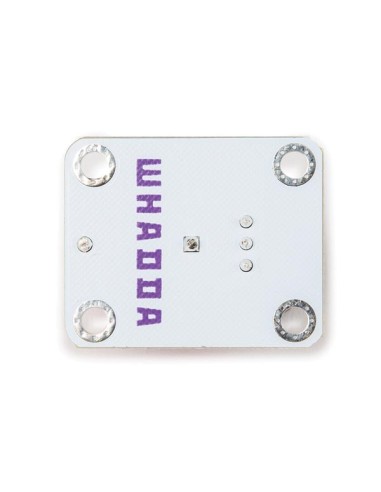

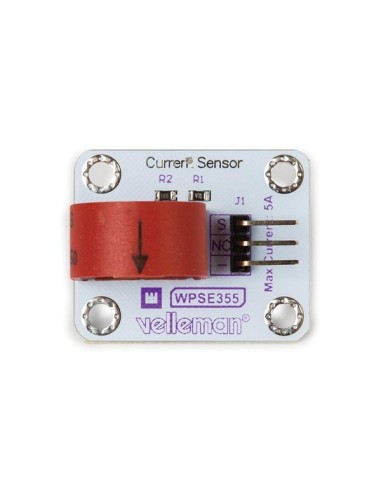

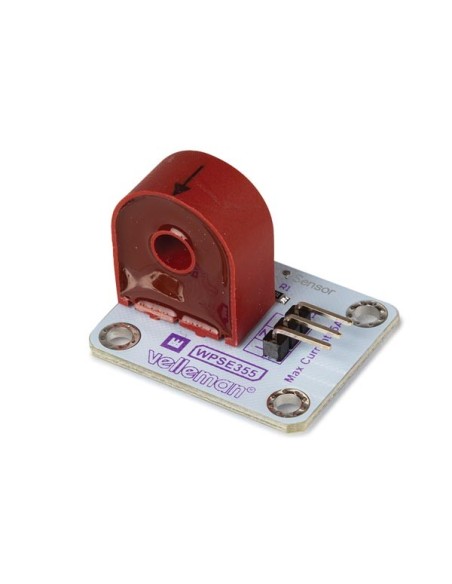

This module measures AC currents of up to 5 A in a contactless method! It has a simple analog voltage signal as an output interface and has a current to voltage conversion factor of 0,4 V / A. Its working frequency range is 20 Hz to 20 kHz and it has a dielectric strength of 600 V AC / 1min. That's some power for a small sensor like this!
Specification(s):
Specification(s):
- measures AC currents of up to 5 A
- simple analog voltage signal output
- contactless measuring method
- current measuring range: 0 - 5 A (AC)
- output interface: analog voltage signal
- current to voltage conversion factor: 0,4 V / A
- working frequency range: 20 Hz - 20 kHz
- dielectric strength: 6000 V AC / 1 min
- weight: 16 g
- dimensions (W x L x H): 30,3 x 24,7 x 23,5 mm
- EAN: 5410329732257
