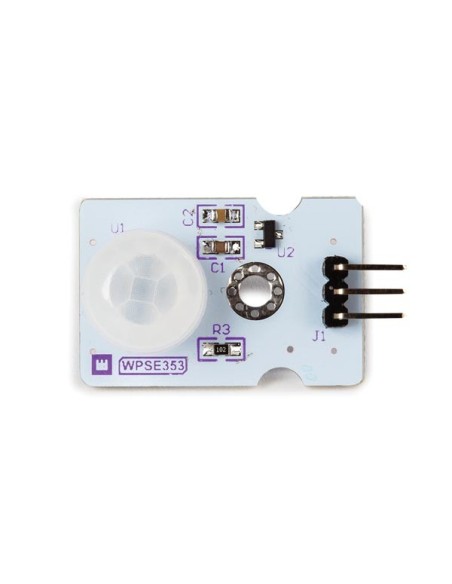

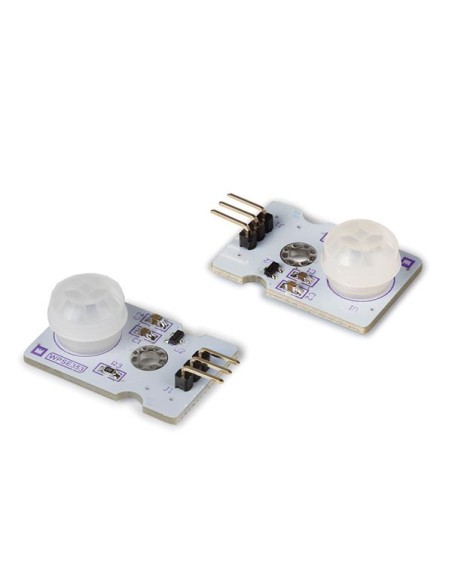

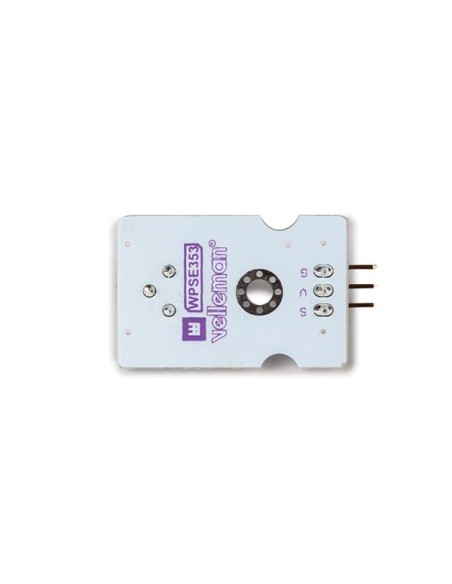

This super compact module can detect motion from a distance of up to 4 meters by using infrared. Aside from the distance, it can coveran angle of 100°.
This sensor is easy to interface and uses simple logic level signal output.
Specification(s):
Specification(s):
- detects motion from up to 4 meters away
- easy to interface with, uses a simple logic level signal output
- 2 modules included
- supply voltage: 3,3 - 5 V
- operating current: 15 µA
- output signal voltage: high: 3 V, low: 0 V
- detection angle: 100°
- detection distance: 3 - 4 meters
- weight: 4 g
- dimensions (W x L x H): 34,4 x 20,0 x 12,5 mm
- EAN: 5410329732233
