VR3SM121C
Out-of-Stock
€1.91
Tax included

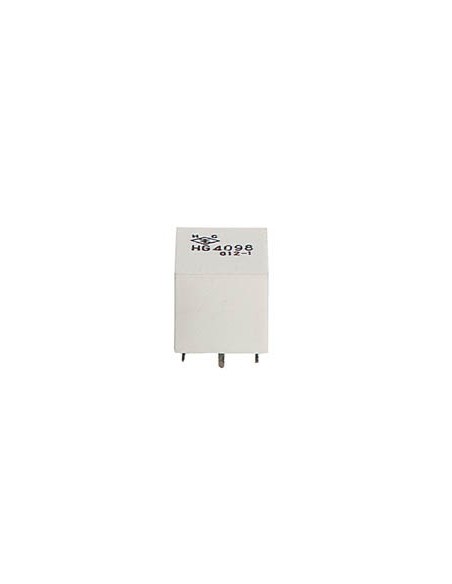

SUPER MINIATURE RELAY 125VAC/3A 1 x INVERTER 12VDC


Specification(s):
  • compact size, not expensive, low dissipation, sealed type
  • used for electronic systems, communication equipment, remote controls, ...
Feature(s):
  • Physical properties
  • Intern contact material: Silver (Ag)
  • Number of inverters: 1
  • Electrical data
  • Maximum switching voltage rating VAC: 125 V
  • Dielectric strength voltage rating VAC: 500 V
  • Coil voltage rating VDC: 12 V
  • Coil resistance: 400 ohm
  • Maximum switching current rating VAC: 3 A
  • Technical data
  • Mounting type: PCB
  • Nominal operating power: 0.36 W
  • Type: Super miniature relay
  • Environmental data
  • Operating temperature: -25-55 °C
  • Operational properties
  • Contact type: Inverter
  • Product basic info
  • Colour: White
  • Depth: 1.51 cm
  • Height: 2.02 cm
  • Weight: 8.7 g
  • Width: 1.92 cm
  • Material: ABS


  • EAN: 5410329292591
