HEAVY-DUTY RELAY 3A/28VDC-220VAC 4 x INVERTERS 24Vdc
VR3HD244C
Available
€7.96
Tax included

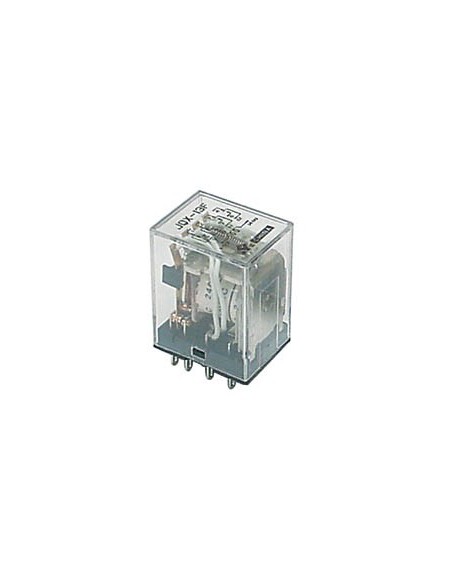

HEAVY-DUTY RELAY 3A/28VDC-220VAC 4 x INVERTERS 24Vdc
Specification(s):
- heavy-duty switching power up to 2200VA
- used in communication equipment, home appliances, electric devices, etc...
- Physical properties
- Intern contact material: Silver cadmium oxide (AgCdO)
- Number of inverters: 4
- Electrical data
- Maximum switching voltage rating VAC: 220 V
- Switching current rating VDC: 3 A
- Dielectric strength frequency rating: 50 Hz
- Dielectric strength voltage rating VAC: 1000 V
- Coil voltage rating VDC: 24 V
- Coil resistance: 600 ohm
- Technical data
- Mounting type: PCB
- Nominal operating power: 0.9 W
- Type: Heavy - duty relay
- Environmental data
- Operating temperature: -55-55 °C
- Operational properties
- Contact type: Inverter
- Product basic info
- Colour: Transparent
- Depth: 2.06 cm
- Height: 4.01 cm
- Weight: 30 g
- Width: 2.68 cm
- Material: ABS
- EAN: 5410329282615
