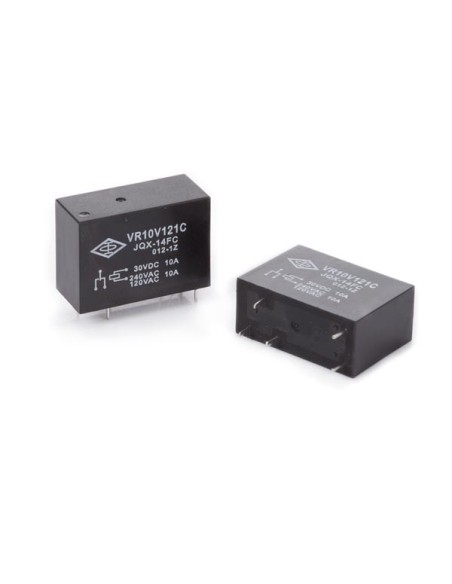

VERTICAL RELAY 10A/30VDC-220VAC,1 x INVERTER 12Vdc
VR10V121C
Available
€5.95
Tax included
VERTICAL RELAY 10A/30VDC-220VAC,1 x INVERTER 12Vdc
Specification(s):
- heavy-duty switching power up to 2200VA
- compact size allows mounting in a confined space
- Physical properties
- Intern contact material: Silver cadmium oxide (AgCdO)
- Number of inverters: 1
- Electrical data
- Maximum switching voltage rating VAC: 220 V
- Switching current rating VDC: 10 A
- Dielectric strength frequency rating: 50 Hz
- Dielectric strength voltage rating VAC: 1000 V
- Coil voltage rating VDC: 12 V
- Coil resistance: 270 ohm
- Maximum switching current rating VAC: 10 A
- Technical data
- Mounting type: PCB
- Nominal operating power: 0.56 W
- Type: Vertical relay
- Environmental data
- Operating temperature: -40-70 °C
- Operational properties
- Contact type: Inverter
- Product basic info
- Colour: Black
- Depth: 1.21 cm
- Height: 2.97 cm
- Weight: 15.5 g
- Width: 2.85 cm
- Material: ABS
- EAN: 5410329283216
