WPM401
Available
€14.91
Tax included

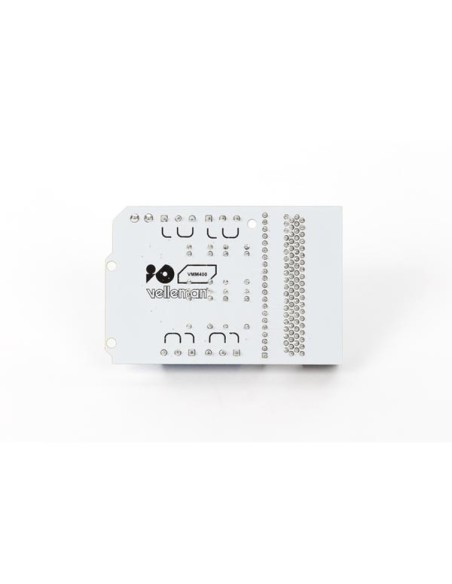

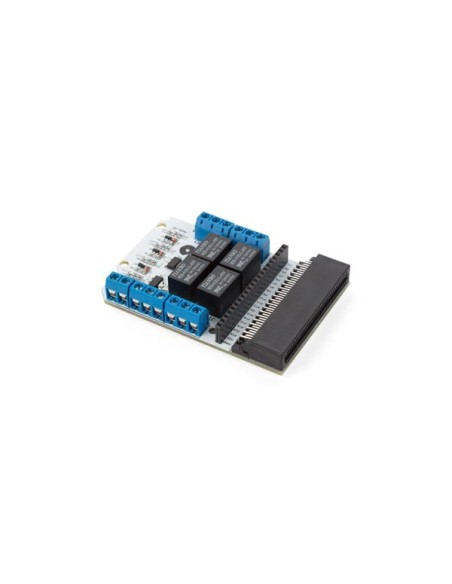

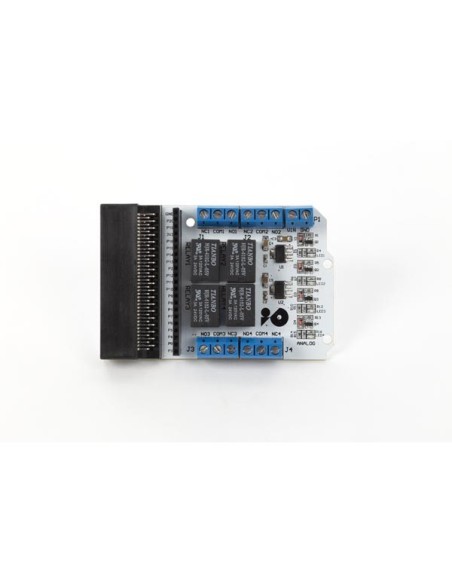

4 CHANNEL RELAY MODULE FOR MICROBIT®


This 4-channel relay interface board can control various appliances and other equipments with high current. It can be controlled directly by a MICROBIT®.

Specification(s):
  • BBC micro:bit® interface connector
  • indicator LEDs for relay output status
  • 3.3 V regulator on board
Feature(s):
  • control input current (P3, P4, P6, P7): max. 5 mA
  • control input voltage: 3.3 - 5 VDC
  • relay output: 24 VDC 3 A (non-inductive)
  • dimensions: 57 x 80 mm
  • operating voltage: 5 VDC
  • contacts: NO / NC


  • EAN: 5410329729974
