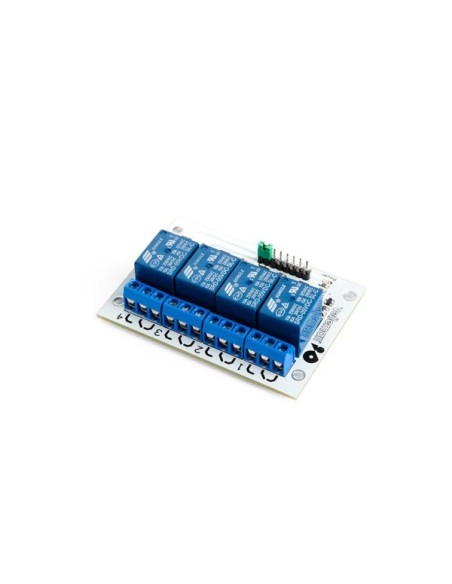

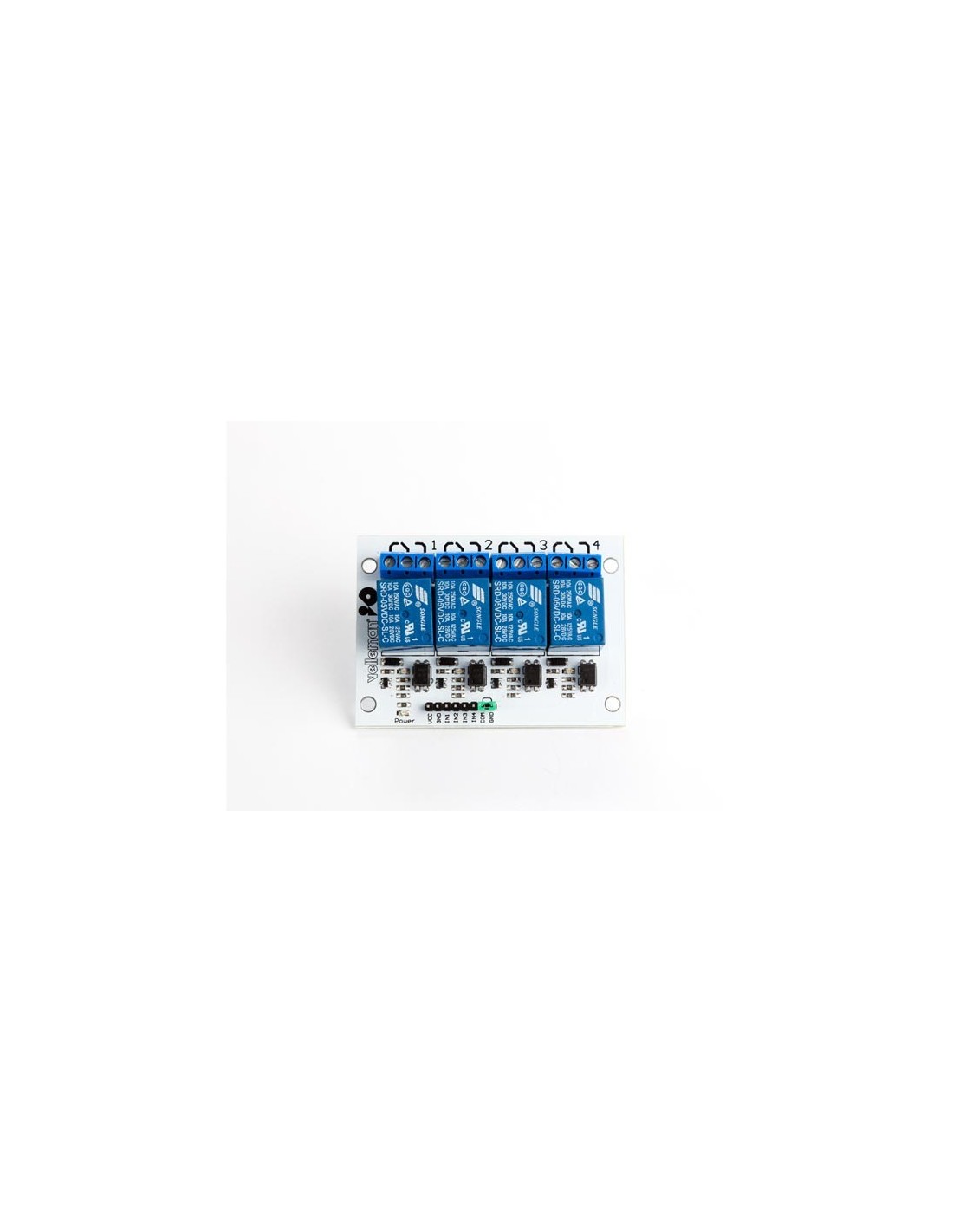

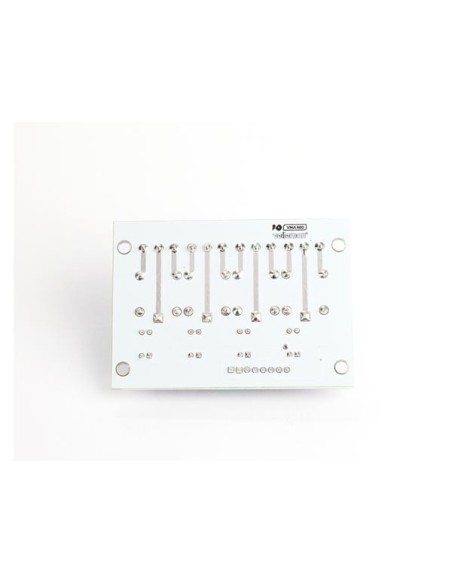

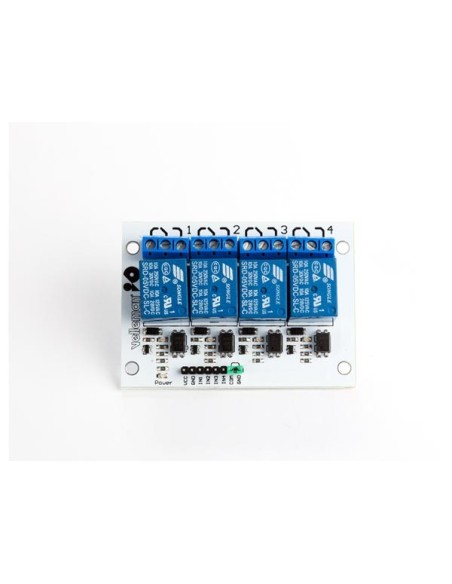

4 CHANNEL RELAY MODULE


This 4-channel relay interface board can control various appliances and other equipments with high current. It can be controlled directly by any micro-controller.

Specification(s):
  • standard interface that can be controlled directly by any microcontroller
  • opto-isolated inputs
  • indicator LEDs for relay output status
Feature(s):
  • control input current (in1 to in4): 5 - 15 mA
  • control input voltage: 5 - 12 VDC
  • relay output: 250 VAC 10 A; 30 VDC 10 A (non-inductive)
  • dimensions: 75 x 55 x 19 mm
  • weight: 61 g


  • EAN: 5410329725389
