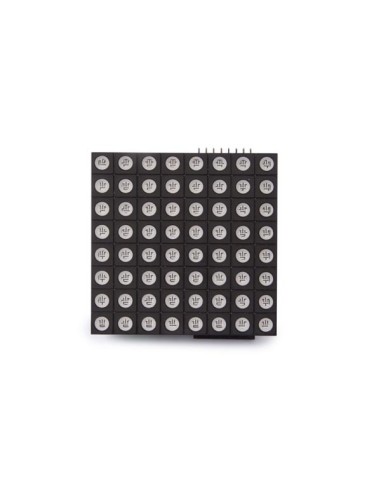

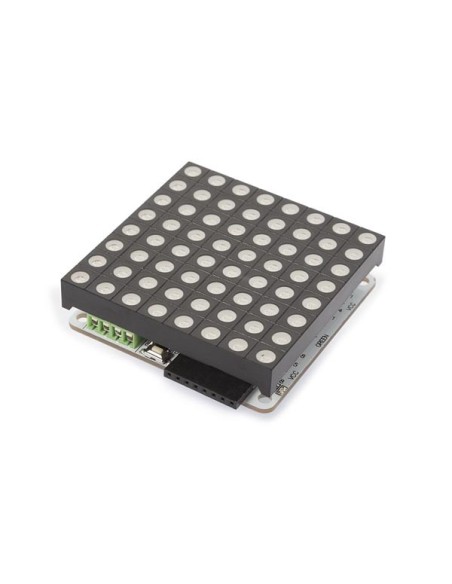

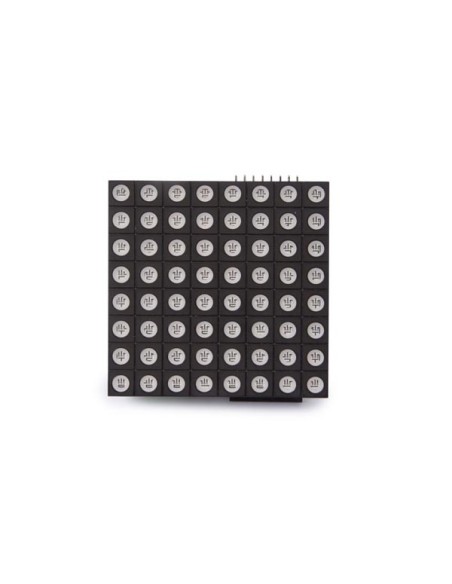

RGB DOT MATRIX BOARD & DRIVER BOARD BASED ON ATMEGA328
WPB439
Available
€34.91
Tax included
RGB DOT MATRIX BOARD & DRIVER BOARD BASED ON ATMEGA328
This Arduino based (ATmega328P) RGB LED matrix driver platform based gains three 8+6-bit channels of hardware PWM control thanks to its LED driver. Its design allows you to easily change or write firmware using the Arduino IDE.
Specification(s):
Specification(s):
- 8 bits colours support with 6 bits correction for each colour in every dots
- hardware 16 MHz PWM support
- without any external circuits, play and shine
- dedicated GPIO and ADC interface
- hardware UART and IIC communication with easy cascading
- 24 constant current channels of 100 mA each
- 8 super source driver channels of 500 mA each

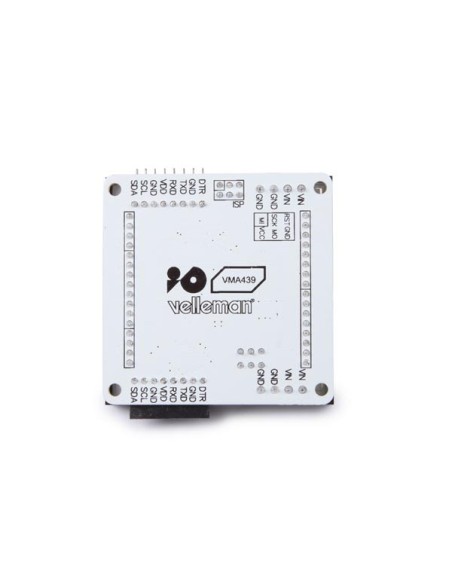

- driver board is based on ATMEGA328 and works with IDE
- module dimensions: 60 x 60 x 16 mm
- microprocessor: Atmega328P
- indicator: PWR state
- power supply: 5 to 7.5 VDC
- cascade power connector: terminal blocks
- program interface: UART/ISP (VMA440)
- expansion socket: 100 mil bended pin header pair
- communication protocols: UART/IIC
- current consumption (except LED matrix): max. 40 mA
- drive current (every channel): max. 500 mA
- drive current ( every dot): max. 58 mA
- circuit response time: 10 ns
- RGB LED matrix colour resolution per dot: 16 M
- UART baud rate: 9600 - 115200
- EAN: 5410329729325
