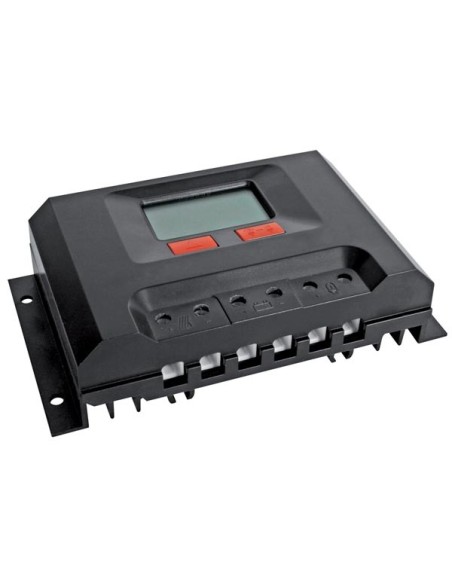

30 A-12 VDC SOLAR CHARGE REGULATOR (max. 30 A - 300 W)
SOL30UC12V
Available
€134.90
Tax included
30 A-12 VDC SOLAR CHARGE REGULATOR (max. 30 A - 300 W)
Specification(s):
- PWM charger
- ideal for solar DC lighting system
- intelligent control with MCU - maintains the battery in a fully charged state
- overcharging, overdischarging and overload protection
- auto-detection of wrong polarity of solar panel and battery
- battery voltage indicated on LCD display
- handles up to 30 A (300 W)
- input current: max. 30 A
- load current : max. 30 A
- input voltage: max. 28 V
- over-charge protection: 14.5 V ± 0.4 V
- over-discharge protection: 10.7 V ± 0.4 V
- output voltage: 12 VDC
- no-load current: < 25 mA
- voltage loss charging circuit: 13.3 V ± 0.4 V
- voltage loss discharging circuit: 12 V ± 0.4 V
- operating temperature: -25°C - +40°C
- dimensions: 160 x 95 x 40 mm
- weight: ± 350 g
- EAN: 5410329408602
