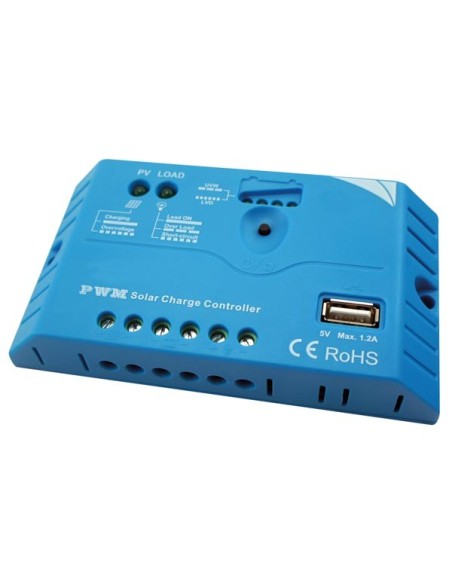

PWM SOLAR CHARGE CONTROLLER WITH USB OUTPUT - 10 A - 12/24 VDC
PWM SOLAR CHARGE CONTROLLER WITH USB OUTPUT -...

PWM SOLAR CHARGE CONTROLLER WITH USB OUTPUT - 10 A - 12/24 VDC

SOL10UC3
Available
€39.95
Tax included
PWM SOLAR CHARGE CONTROLLER WITH USB OUTPUT - 10 A - 12/24 VDC


Specification(s):
  • efficient PWM charger: increases battery life and improves solar system performance
  • LED indicator for battery status
  • supports 3 battery types: sealed, gel , flooded
  • temperature compensation, automatic selection of charging and discharging settings
  • electronic protections: overload, short circuit, over-discharging, over-voltage, low-voltage, reverse polarity
  • with 5 VDC USB port to charge electronic equipment
Feature(s):
  • nominal system voltage: 12 / 24 VDC
  • max. battery voltage to the controller: 32 V
  • rated battery current: 10 A
  • charge circuit voltage drop: <= 0.26 V
  • discharge circuit voltage drop: <= 0.15 V
  • self-consumption: <= 6 mA
  • temperature compensation: -5 mV / °C / 2 V
  • operating temperature: -35 °C to +55 °C
  • storage temperature: -35 °C to +80 °C
  • humidity: <= 95%, non-condensing
  • USB-port: 5 VDC max. 1.2 A
  • IP rating: IP20
  • terminal: 4 mm²
  • dimensions: 120.3 x 67 x 21.8 mm
  • mounting hole diameter: 4.5 mm
  • weight: 102 g


  • EAN: 5410329671495
