LARGE BRIGHTDOT CIRCLE
WMW109
Available
€19.90
Tax included

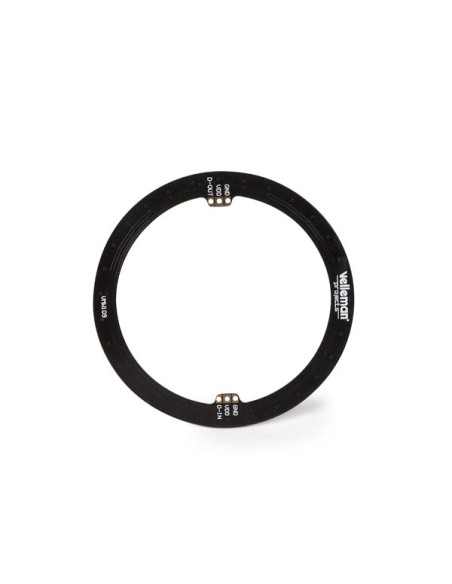

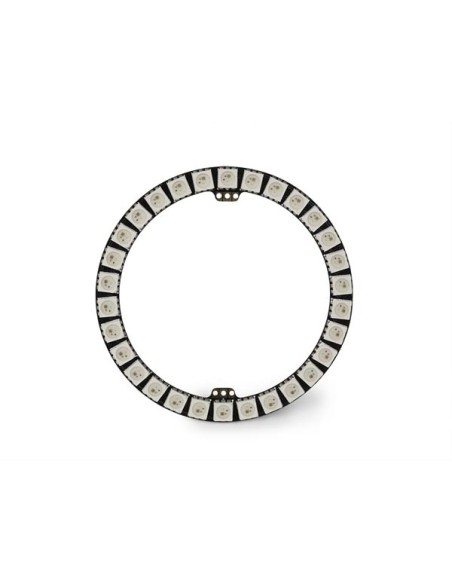

LARGE BRIGHTDOT CIRCLE
It's time to get creative with LEDs thanks to the BrightDot wearable collection!
The entire collection includes a series of diverse PCBs with addressable RGB LEDs and a unique Arduino compatible [product name=WMW101][/product] to create something bright & wearable that's also smart.
This set includes a large Brightdot circle. Each PCB is super thin and includes gold plated contacts with 6 sewing holes of 1.22mm (0,04 inch). Also, all models have backup lines to ensure that one broken LED does not affect the others.
Every LED is controlled by 3 wires (power, ground & data) and can be connected via these wires to the next LED, creating a big string of LEDs. You can solder these LEDs in electric circuits, or sew them into clothing, onto backpacks, onto shoes, …
[b]Check out the following tutorials:[/b]
[link url=https://manuals.velleman.eu/article.php?id=1146]Make a BrightDot tie[/link]
[link url=https://manuals.velleman.eu/article.php?id=1145]Make a BrightDot twinkle beanie[/link]
Specification(s):
Specification(s):
- 1 x large BrightDot circle
- integrated backup line (this ensures that one broken LED does not affect the next LED)
- each PCB has gold plated contacts with 6 sewing holes of 1.22 mm
- solder or sew them!
- max. current consumption: 60 mA / LED at full brightness
- power supply: 3.3 V - 5 V
- diameter: 69 mm (2.7 inch)
- PCB thickness: 2.1 mm (0.082 inch)
- required: [product name=WMW101][/product] or other Arduino compatible development board
- EAN: 5410329729509
