CORNER BRIGHTDOT PACK

It's time to get creative with LEDs thanks to the BrightDot wearable collection! BrightDots are small and wearable modules with one or more LEDs that need to be controlled by an Arduino compatible development board. The entire collection includes a series of diverse modules with addressable RGB LEDs that can be controlled individually. We also developed a unique Arduino compatible [product name=WMW101][/product] that you can use to create something bright & wearable that's also smart. This set includes 2 left BrightDot corners and 2 right BrightDot corners. Each PCB is super thin and includes gold plated contacts with 6 sewing holes of 1.22mm (0,04 inch). Also, all models have backup lines to ensure that one broken LED does not affect the others. Every LED is controlled by 3 wires (power, ground & data) and can be connected via these wires to the next LED, creating a big string of LEDs. You can solder these LEDs in electric circuits, or sew them into clothing, onto backpacks, onto shoes, … [b]Check out the following tutorials:[/b] [link url=https://manuals.velleman.eu/article.php?id=1146]Make a BrightDot tie[/link] [link url=https://manuals.velleman.eu/article.php?id=1145]Make a BrightDot twinkle beanie[/link]

Specification(s):

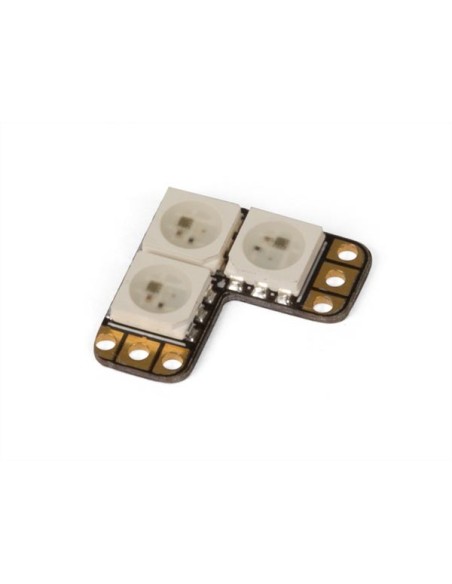

• 2 x left BrightDot corners
• 2 x right BrightDot corners
• integrated backup line (this ensures that one broken LED does not affect the next LED)
• each PCB has gold plated contacts with 6 sewing holes of 1.22 mm
• solder or sew them!

Feature(s):

• dimensions (L x W): 14.25 x 6.5 mm (0.56 x 0.255 inch)
• max. current consumption: 60 mA / LED at full brightness
• power supply: 3.3 V - 5 V
• PCB thickness: 2.1 mm (0.082 inch)
• required: [product name=WMW101][/product] or other Arduino compatible development board

• EAN: 5410329729462
