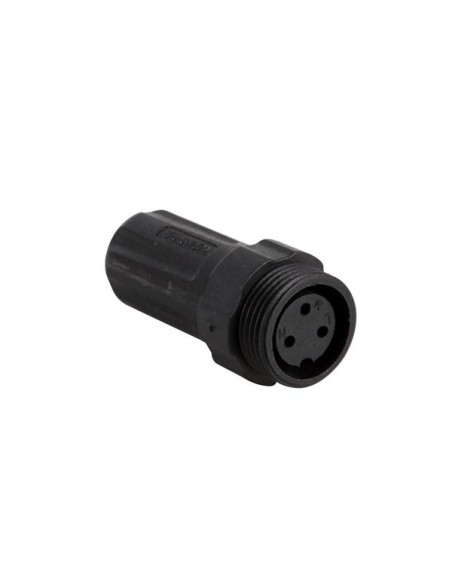

WATERPROOF FEMALE MULTI-PIN CONNECTOR - 3 PINS
WATERPROOF FEMALE MULTI-PIN CONNECTOR - 3 PINS

WATERPROOF FEMALE MULTI-PIN CONNECTOR - 3 PINS

CUF3W
Available
€6.96
Tax included
WATERPROOF FEMALE MULTI-PIN CONNECTOR - 3 PINS


Specification(s):
  • waterproof
  • without strain relief (SR)
  • solder connections
  • with coupling nut
  • to be used with: [product name=CUM3W]CUM3W[/product]
Feature(s):
  • current rating: 10 A
  • contact resistance: < 5 mohm
  • insulation resistance: > 500 mohm @ 500 Vdc
  • breakdown voltage: 1000 V
  • IP rating: IP68, 10 m water, 2 weeks
  • durability: > 3000 plug/unplug cycles
  • material:
  • body: nylon + GF UL94V-0 1/16"
  • contact: brass C2680 & C17200 4µ" - 20µ" gold plated
  • sealing: EPDM
  • number of contacts: 3
  • type: female
  • cable Ø: 6.5 - 8.5 mm
  • connector Ø: 26 mm


  • EAN: 5410329458676
