MULTIFUNCTION RELAY SWITCH
MULTIFUNCTION RELAY SWITCH

MULTIFUNCTION RELAY SWITCH

K8015
Out-of-Stock
€24.90
Tax included

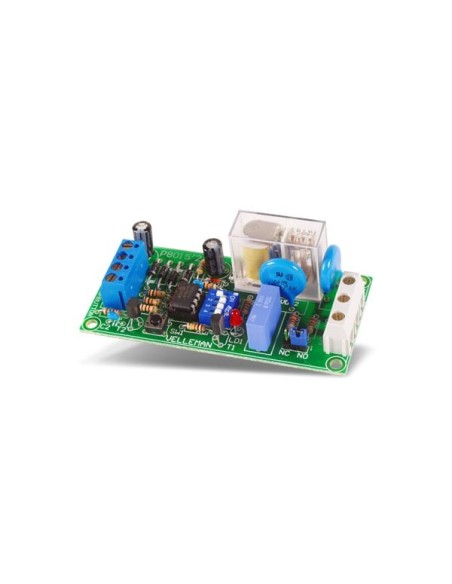

MULTIFUNCTION RELAY SWITCH


14 different functions including timers, switching, flashing, interval, random switching, ... Two pre-programmed delays. Learning mode for delays of 2s up to 12 days. Pushbutton control. EEPROM for delay time storage in case of power failure. On-board transient filter for the relay contacts. Suitable for control of incandescent lighting, halogen lighting, fluorescent lighting, fans, valves, buzzers,...

Specification(s):
  • also available as plug-in module: [product name=K8008]K8008[/product] for [product name=K8006]K8006[/product] base unit for modular light system
Feature(s):
  • operating voltages: 9-12Vac or 12Vdc
  • max. load: 5A (1100W / 230V ; 550W / 115V)
  • dimensions pcb: 87 x 39 x 26mm / 3.4 x 1.5 x 1"


  • EAN: 5410329080150
