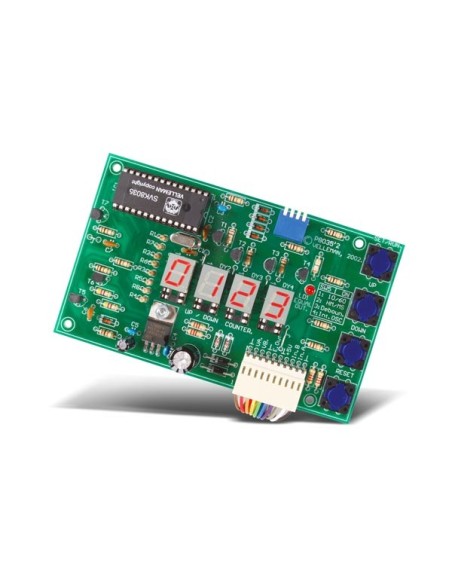

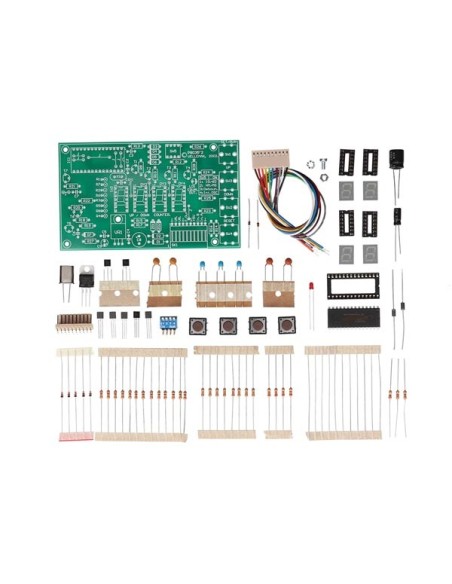

MULTIFUNCTIONAL UP/DOWN COUNTER
MULTIFUNCTIONAL UP/DOWN COUNTER
MULTIFUNCTIONAL UP/DOWN COUNTER
MULTIFUNCTIONAL UP/DOWN COUNTER

MULTIFUNCTIONAL UP/DOWN COUNTER

WST8035
Available
€29.96
Tax included
MULTIFUNCTIONAL UP/DOWN COUNTER


Specification(s):
  • very practical for counting people or parts, scorekeeping, ...
  • counts up or down
  • count input through on-board push buttons or by external pulses
  • display modes: normal or time (hh:mm and mm:ss)
  • an internal oscillator allows time measurement
  • a memory function constantly compares the current value with a preset value and activates an output for as long as both are equal
  • self diagnostic at power up
  • comes with easy board-to-wire connector (20cm wire)
Feature(s):
  • counter input voltage: 3...12Vdc (normal dry contact also possible)
  • EQUAL output: 5Vdc / max. 50mA
  • max. counting speed: 200 / sec. (2 / sec. with long debounce delay)
  • max. count: 4 digits (9999 / 23h59m / 59m59s)
  • power supply: 9 - 12Vdc or transformer 2 x 9Vac / 300mA, type : [product name=209005]209005[/product]
  • power consumption: 150mA max.
  • dimensions: 125 x 75mm / 4.9 x 3"


  • EAN: 5410329733711
